Understanding Oil-Water Separator Overflow
An overflowing oil-water separator is one of the most common warning signs that something is wrong with your compressed air system. When liquid begins to back up and overflow from the separator, it indicates that the equipment cannot process moisture and oil at the expected rate. This issue not only wastes valuable resources but can also damage downstream equipment, contaminate production processes, and create workplace hazards.
The oil-water separator plays a critical role in your compressor system by removing contaminants and separating liquids before they reach your tools and equipment. When this component malfunctions, the entire compressed air quality deteriorates. Understanding the root causes of overflow and how to address them will help you maintain system efficiency and extend equipment lifespan.
This comprehensive guide walks you through the common reasons why separators overflow, diagnostic procedures you can perform immediately, and both temporary and permanent solutions to restore normal operation.
Common Causes of Oil-Water Separator Overflow
1. Clogged or Restricted Filter Element
The filter element inside your separator is designed to trap microscopic particles, moisture droplets, and oil mist. Over time, this element accumulates contaminants and becomes increasingly restricted. As the filter clogs, backpressure builds inside the separator vessel, preventing normal liquid drainage and causing overflow.
A severely clogged filter can increase pressure differential by 300% to 400%, which forces liquid back through the inlet line. Regular inspection of the filter element is essential—most manufacturers recommend replacement every 1,000 to 2,000 operating hours, though this varies based on air quality and operating conditions.
2. Blocked or Frozen Drain Line
The drain line that allows separated liquids to exit the vessel is vulnerable to blockage from several sources. Viscous oil can solidify and clog the drain, ice crystals can form in cold environments, mineral deposits can accumulate, or debris can obstruct flow. When the drain line is blocked, liquid has nowhere to go except back into the system.
Ice formation is particularly common in operations where compressed air cools rapidly after expansion, especially if the separator is located in unheated areas or outdoor installations. Even a small ice crystal can restrict drainage significantly and cause overflow within hours.
3. Inadequate Separator Sizing
If your system's air flow demands exceed the separator's design capacity, overflow becomes inevitable. Separator sizing is calculated based on volumetric flow rate (CFM), pressure, and anticipated moisture load. When operators increase compressor output or add new air-consuming equipment without upgrading the separator, the component becomes overwhelmed.
A separator rated for 100 CFM operating at 150 CFM cannot effectively separate liquids in the brief contact time available. Liquid simply passes through without being removed, creating a constant overflow condition.
4. Malfunctioning Float Valve or Level Switch
The float valve controls when separated liquid is discharged from the separator. If this valve sticks in the closed position due to debris, corrosion, or mechanical wear, liquid cannot drain properly. Alternatively, if the automatic drain valve fails, manual drainage becomes impossible and overflow occurs.
Level switches that trigger automatic drainage may become corroded, disconnected, or misaligned. When these switches fail to operate, the overflow condition worsens progressively until operator intervention is required.
5. Excessive Moisture Intake
If your compressed air intake is drawing moisture-laden air from humid environments—particularly in coastal regions, tropical climates, or near water sources—the separator may receive more moisture than its design capacity. High humidity combined with temperature fluctuations can overwhelm even properly sized equipment.
Industrial facilities operating near cooling towers, rain-exposed compressor intakes, or in high-humidity climates may need additional drying equipment upstream of the separator to prevent continuous overflow.
6. Temperature-Related Issues
Oil viscosity changes dramatically with temperature. Cold oil becomes thick and sluggish, restricting flow through drain lines and separator passages. Conversely, excessive heat can cause seals to degrade and allow leakage. Additionally, rapid temperature changes cause condensation, increasing the overall moisture load beyond what the separator can handle.
Winter startup conditions often trigger overflow as cold-thickened oil moves through the system inefficiently. Heating systems or thermostatic control devices may be necessary in cold climates.
7. Incompatible or Degraded Lubricant
Using the wrong type of compressor oil or allowing oil to degrade through oxidation changes its separation characteristics. Degraded oil becomes more viscous, foams excessively, and creates separation challenges. Some synthetic oils or oil additives can interfere with coalescence, the process by which tiny oil droplets merge into larger drainable pools.
Oil replacement intervals exist specifically to prevent this degradation. Operating beyond recommended intervals compromises separator performance significantly.
Diagnostic Steps to Identify the Problem
Step 1: Visual Inspection
Begin by observing the overflow characteristics. Note the color and consistency of the liquid: clear water suggests excessive moisture, milky white indicates oil-water emulsion (poor separation), and dark liquid points to degraded oil. The appearance tells you much about the underlying issue.
Inspect the separator vessel for visible damage, corrosion, leaks, or loose connections. Check all drain lines for kinks, cracks, or disconnections. Look for ice formation in cold environments. Record the exact location where overflow is occurring—from the top, side, drain valve, or pressure line.
Step 2: Pressure Testing
Install a pressure gauge on the separator inlet to measure backpressure. Compare this reading to the manufacturer's specification, which typically ranges from 0.5 to 2.0 PSI under normal operating conditions. Readings significantly higher than specified indicate filter blockage or internal restriction.
Perform this test while the system is running at normal production capacity. Sudden pressure spikes during this test confirm that the filter element requires immediate replacement.
Step 3: Flow Rate Verification
Measure the actual volumetric flow rate of compressed air entering the separator. Use a calibrated flow meter or reference your compressor's gauge. Compare this to the separator's rated capacity. If actual flow exceeds rated capacity, inadequate sizing is confirmed.
Many operators discover during this step that equipment additions over the years have gradually increased air demand beyond original system design parameters.
Step 4: Drain Line Testing
Manually operate the drain valve (or automatic drain if equipped) to verify liquid is being released. If no liquid flows despite the separator appearing full, the drain line is blocked. Attempt to clear the blockage by gently tapping the drain line or applying heat to warm cold, viscous oil.
Do not force drain lines with excessive pressure, as you may cause damage. If manual clearing fails, the line requires removal and flushing with appropriate solvents.
Step 5: Element Condition Assessment
Remove and visually inspect the filter element. A saturated, discolored, or visibly blocked element should be replaced immediately. If the element appears acceptable, hold it up to light; if no light passes through, replacement is required regardless of operating hours.
Document the element's condition and current operating hours to establish a replacement interval pattern for future maintenance.
Step 6: Oil Quality Verification
Collect a sample of the compressor oil and visually assess its condition. Excessively dark, foamy, or contaminated oil should be drained and replaced. Consider sending a sample to a laboratory for viscosity and oxidation analysis if you suspect oil degradation.
Poor oil quality is a common but frequently overlooked cause of separator overflow. Fresh, clean oil often resolves overflow issues when combined with other corrections.
Immediate Actions to Stop Overflow
Emergency Drainage
If overflow is imminent or occurring, manually drain the separator immediately by opening the drain valve fully. Position a collection container beneath the valve to capture all liquid. This temporary measure provides immediate relief and prevents contamination of downstream equipment.
Repeat this process every 30 to 60 minutes until you can implement a permanent solution. While labor-intensive, this prevents system damage and maintains operational continuity during troubleshooting.
Reduce System Demand
Temporarily reduce compressed air consumption by shutting down non-essential equipment. Lower system demand decreases the amount of moisture entering the separator, providing temporary relief while you diagnose and repair the underlying issue.
This strategy is particularly effective when moisture intake is the primary cause. Even a 20-30% reduction in air consumption can sometimes bring the separator back into operational range temporarily.
Filter Element Replacement
If diagnostics suggest a clogged filter, replacement should be your first priority. Most filter changes require less than 15 minutes and can be performed with basic tools. Ensure the system is depressurized and cooled before beginning this procedure.
Stock replacement filters in your maintenance inventory. Having the correct element readily available eliminates downtime caused by waiting for parts delivery.
Drain Line Clearing
If blockage is suspected, disconnect the drain line at both ends (ensuring the system is depressurized first) and flush the line with compressed air or appropriate cleaning fluid. For severely blocked lines, soaking in solvent overnight may be necessary.
Reinstall the cleared line and test drainage by manually opening the drain valve. Proper flow should resume immediately.
Temperature Management
In cold environments, apply external heat to drain lines using heat tape, insulation wrapping, or heat lamps. This warms viscous oil, restoring flow. Permanently relocating the separator to a warmer location or installing a heating system prevents recurrence.
Even insulation wrapping around the separator vessel and drain lines can significantly improve performance in temperature-sensitive applications.
Permanent Solutions and Long-Term Prevention
Upgrade to Appropriately Sized Equipment
If diagnostics reveal that separator sizing is inadequate, upgrading to a larger unit is the definitive solution. Modern separators offer higher separation efficiency and greater capacity than older models. An upgraded unit eliminates overflow, improves air quality, and reduces maintenance frequency.
When selecting replacement equipment, account for future growth. Sizing the separator 20-30% larger than current demand provides a safety margin for future expansion without requiring another upgrade within several years.

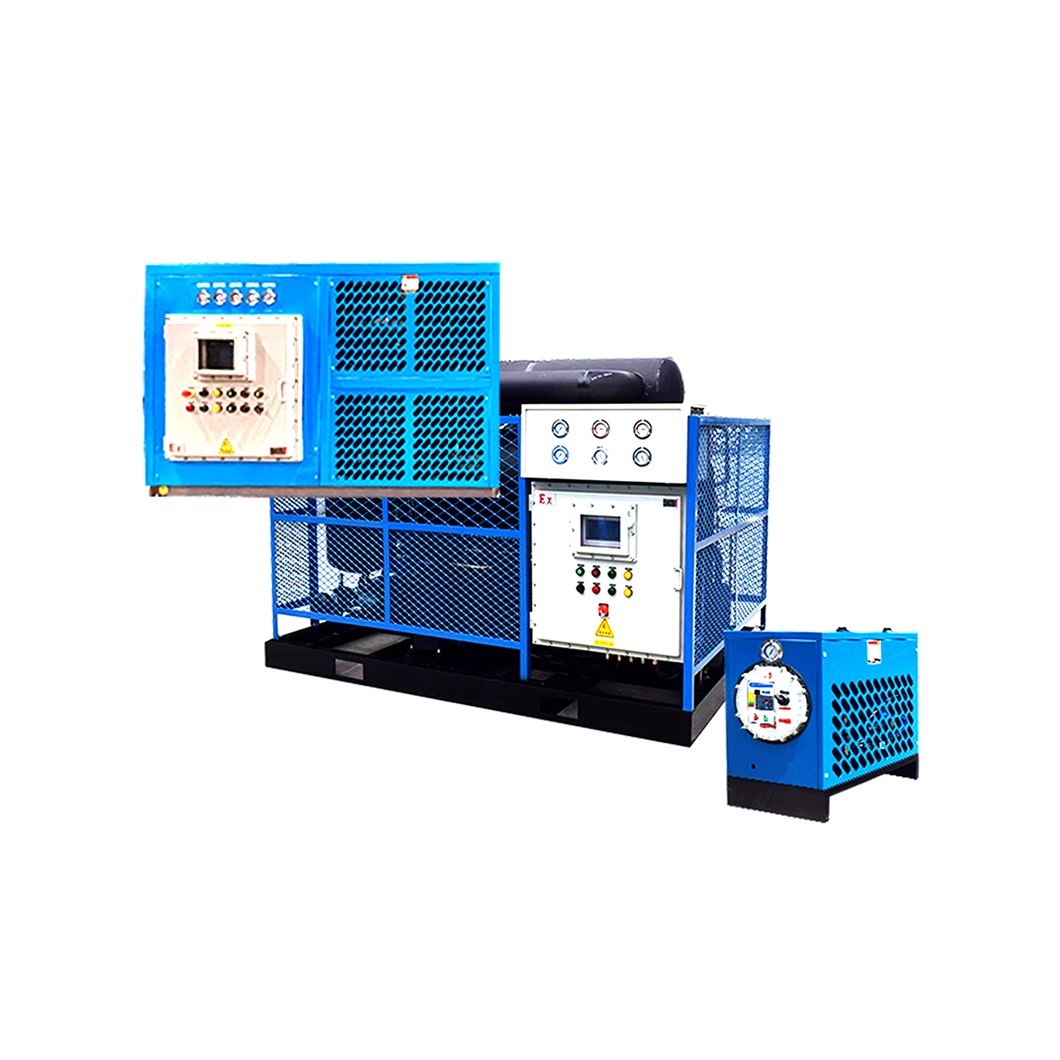

Install Secondary Drying Equipment
In humid environments or applications requiring exceptionally dry air, installing an air dryer upstream of the separator reduces the moisture load entering the separator. This protects the separator from being overwhelmed and improves overall system air quality.
Drying equipment removes moisture before it becomes a burden on the separator, working synergistically to keep your system clean and efficient. This combination approach is particularly valuable in tropical or coastal operations.
Implement Preventive Maintenance Schedule
Establish a documented maintenance schedule that includes filter replacements, oil changes, drain line inspections, and pressure monitoring at regular intervals. Most manufacturers recommend quarterly or semi-annual maintenance for industrial applications.
Preventive maintenance costs far less than emergency repairs and downtime caused by catastrophic separator failure. Create maintenance logs to track element changes, oil replacements, and any overflow incidents.
Upgrade to Automatic Drain Systems
Replace manual drain valves with automatic drain systems that trigger when liquid levels reach a preset threshold. Electronic or pneumatic float switches can be configured to open drains periodically, preventing liquid accumulation.
Zero-air-loss drain valves are particularly valuable, as they eliminate compressed air waste that occurs when manually draining. Modern systems can provide level monitoring and alert operators when action is required.
Optimize Intake Air Quality
Relocate the compressor intake to a drier location away from moisture sources. Ensure intake areas are shielded from rain and direct sunlight exposure. Consider installing intake filters designed to remove large moisture droplets before air enters the compressor.
Quality intake air significantly reduces the moisture and particulate load on the separator, extending element life and preventing overflow.
Temperature Control Installation
Install thermostatic valves or heating systems to maintain optimal separator operating temperature. Cold oil restricts flow, so maintaining temperatures between 50-80°F ensures viscosity remains in the optimal range for drainage.
Heated separator installations are standard in cold climates and facilities operating year-round in temperature-variable environments.
Use Correct Lubricant Specification
Consult your compressor manual and use only lubricants meeting the specified viscosity grade and type. Do not substitute products or mix brands. Maintain strict oil replacement intervals to prevent degradation.
The correct lubricant directly impacts separator performance. Using the right oil is as important as proper equipment sizing.
Maintenance Checklist and Schedule
Use this comprehensive maintenance table to establish regular inspection intervals and document all procedures performed on your separator system.
| Maintenance Task | Frequency | Time Required | Priority Level |
|---|---|---|---|
| Visual inspection of vessel and connections | Monthly | 10 minutes | High |
| Manual drainage of collected liquid | Weekly to Monthly | 5 minutes | High |
| Filter element pressure check | Monthly | 10 minutes | Medium |
| Drain line inspection and testing | Quarterly | 15 minutes | High |
| Filter element replacement | 1,000-2,000 hours | 15 minutes | High |
| Compressor oil sample collection | Semi-annually | 10 minutes | Medium |
| Complete oil change | Annually or per manual | 30 minutes | High |
| Automatic drain valve testing | Quarterly | 10 minutes | Medium |
| System pressure and temperature monitoring | Daily | 5 minutes | High |
| Intake filter inspection | Monthly | 5 minutes | Medium |
Warning Signs That Require Immediate Attention
Certain indicators demand immediate action to prevent equipment damage and system failure. Do not ignore these warning signs.
- Milky white or emulsified liquid leaking from separator drain—indicates poor separation or water contamination
- Continuous overflow despite recent drainage—suggests persistent clogging or inadequate sizing
- Abnormal hissing or gurgling sounds from the separator—indicates liquid in air lines or internal turbulence
- Pressure differential reading exceeding 3.0 PSI—confirms severe filter restriction requiring immediate replacement
- Oil level rising rapidly in the separator—suggests continuous moisture intake overwhelming separation capacity
- Visible corrosion, rust, or pitting on the separator vessel—indicates potential structural failure
- Compressor discharge temperature exceeding 220°F—may accelerate oil degradation and worsen separation
- Automatic drain valve failing to operate—prevents normal liquid removal
- Unusual odors from separator area—suggests chemical degradation or contamination
- Downstream equipment failures or excessive moisture—confirms separator is not functioning
Comparison: Typical Separator Performance vs. Overflow Conditions
This comparison illustrates how performance changes when overflow conditions develop.
| Performance Parameter | Normal Operation | Early Overflow Warning | Severe Overflow |
|---|---|---|---|
| Filter Pressure Differential | 0.5 - 1.5 PSI | 2.0 - 3.0 PSI | Above 4.0 PSI |
| Liquid Drainage Rate | Continuous, steady flow | Intermittent or slow | No drainage or backup |
| Separator Output Air Quality | Dry, clean, oil-free | Slight moisture or oil mist | Visibly wet or oily |
| Operating Temperature | 50 - 80°F | 60 - 90°F | Above 100°F |
| Maintenance Interval | Quarterly to semi-annual | Monthly | Weekly or daily |
| Visible Symptoms | No visible leaks or backups | Occasional drips or slow drainage | Continuous overflow, standing liquid |
| Filter Element Appearance | Slightly darkened, no blockage | Medium discoloration | Heavily clogged, saturated |
Understanding Your Separator System
The following diagram illustrates how compressed air flows through a typical oil-water separator system and where overflow issues commonly occur.
When the filter element becomes clogged or the drain line is blocked, pressure builds in the upper chamber and liquid backs up, seeking alternate exit paths. This is where overflow manifests. Understanding this flow helps you identify where to focus diagnostics and maintenance efforts.
Frequently Asked Questions
Q1: How often should I replace my separator filter element?
Most manufacturers recommend replacing the filter element every 1,000 to 2,000 operating hours under normal conditions. However, if your system draws air from humid or dusty environments, replacement may be required every 500-1,000 hours. Track the element's age and operating hours to establish a pattern specific to your facility. Replace immediately if pressure differential exceeds specifications, regardless of elapsed time.
Q2: What does milky white liquid from my separator mean?
Milky white or emulsified discharge indicates that water and oil are mixing rather than separating properly. This suggests either the separator element is severely blocked (preventing normal coalescence), the oil is degraded (affecting separation characteristics), the system temperature is too cold (thickening oil), or the separator is operating beyond its design capacity. Investigate all these factors. Replacing both the filter element and the oil simultaneously often resolves this issue.
Q3: Can I temporarily increase drain valve opening to handle overflow?
Opening the drain valve wider provides only temporary relief and does not address the underlying problem. You will still lose separated liquids and waste resources. Instead, focus on identifying why liquids are accumulating—filter clogging, drain line blockage, or design undersizing. Treat manual drainage as a short-term emergency measure while you implement permanent solutions.
Q4: Is overflow normal when my compressor operates in cold weather?
Overflow in cold weather typically indicates that cold-thickened oil is not flowing through drain lines adequately. This is not normal and requires intervention. Install heat tape on drain lines, insulate the separator, relocate the equipment to a warmer location, or install a separator heating system. Allowing this condition to persist will eventually damage the separator vessel or internal components.
Q5: How can I tell if my separator is undersized for my system?
Measure your actual compressed air flow rate using a calibrated flow meter and compare it to your separator's rated capacity (found on the nameplate or specification sheet). If actual flow exceeds rated capacity by 20% or more, the separator is undersized. Additionally, if overflow occurs immediately after replacing the filter element and drain line appears clear, inadequate sizing is likely. The only permanent solution is upgrading to a larger unit.
Q6: What type of compressor oil should I use in my separator?
Always use the compressor oil type specified in your equipment manual. Most rotary screw compressors require synthetic or mineral ISO 32 to ISO 46 weight oils. Using the wrong type or mixing brands can compromise separation performance. Check your manual for the exact viscosity and performance requirements. Never attempt to substitute with non-approved alternatives.
Q7: Can a clogged intake filter cause separator overflow?
Yes, although indirectly. A severely clogged intake filter reduces system pressure, which can affect the separator's ability to function optimally. However, a clogged intake primarily impacts compressor performance rather than separator function. Maintain intake filters regularly, but recognize that overflow typically results from separator-specific issues rather than intake problems.
Q8: Should I consider adding a secondary dryer to my system?
If your facility experiences frequent overflow despite recent filter replacement and drain line maintenance, especially in humid climates, a secondary dryer is an excellent investment. Removing moisture before it reaches the separator reduces the load on the separator element and prevents overflow. This is particularly valuable for sensitive applications requiring ultra-dry compressed air.
Q9: How do I prevent separator overflow during extended shutdowns?
Before extended shutdowns, fully drain the separator by opening the drain valve until all liquid is removed. Disconnect the drain line to allow any residual liquid to evaporate. Upon restart, allow the system to run for several minutes before introducing full load, giving the separator time to establish normal separation. If the facility is unheated, install a drain heater to prevent ice formation.
Q10: What maintenance steps can I perform myself versus requiring a technician?
You can safely perform visual inspections, manual drainage, filter replacement, intake filter cleaning, and drain line clearing (with proper depressurization). Pressure testing, internal separator inspection, valve repair, and system modifications should be performed by qualified technicians. When in doubt, contact your equipment manufacturer or a certified compressed air service provider.
Conclusion: Taking Control of Your Separator System
Oil-water separator overflow is a manageable problem with clear solutions once you understand the root causes. Whether the issue stems from a simple clogged filter, blocked drain line, or more complex factors like inadequate sizing or temperature sensitivity, systematic diagnosis will reveal the problem and guide your corrective action.
The most important takeaway is that prevention through regular maintenance is far more cost-effective than dealing with emergency overflow situations. Implement a quarterly maintenance schedule that includes filter inspection, oil quality assessment, drain line testing, and pressure monitoring. This proactive approach prevents 80% of separator failures and overflow conditions before they occur.
If overflow persists despite your troubleshooting efforts, do not hesitate to consult with a compressed air systems specialist. Certain issues—such as internal separator damage or valve malfunction—require professional diagnosis and repair. The investment in professional service is justified compared to the costs of system downtime and contaminated air damage to downstream equipment.
Your compressed air system is as reliable as its weakest component. By maintaining your oil-water separator in peak condition, you protect your entire system, ensure consistent air quality, and maximize your equipment investment.
