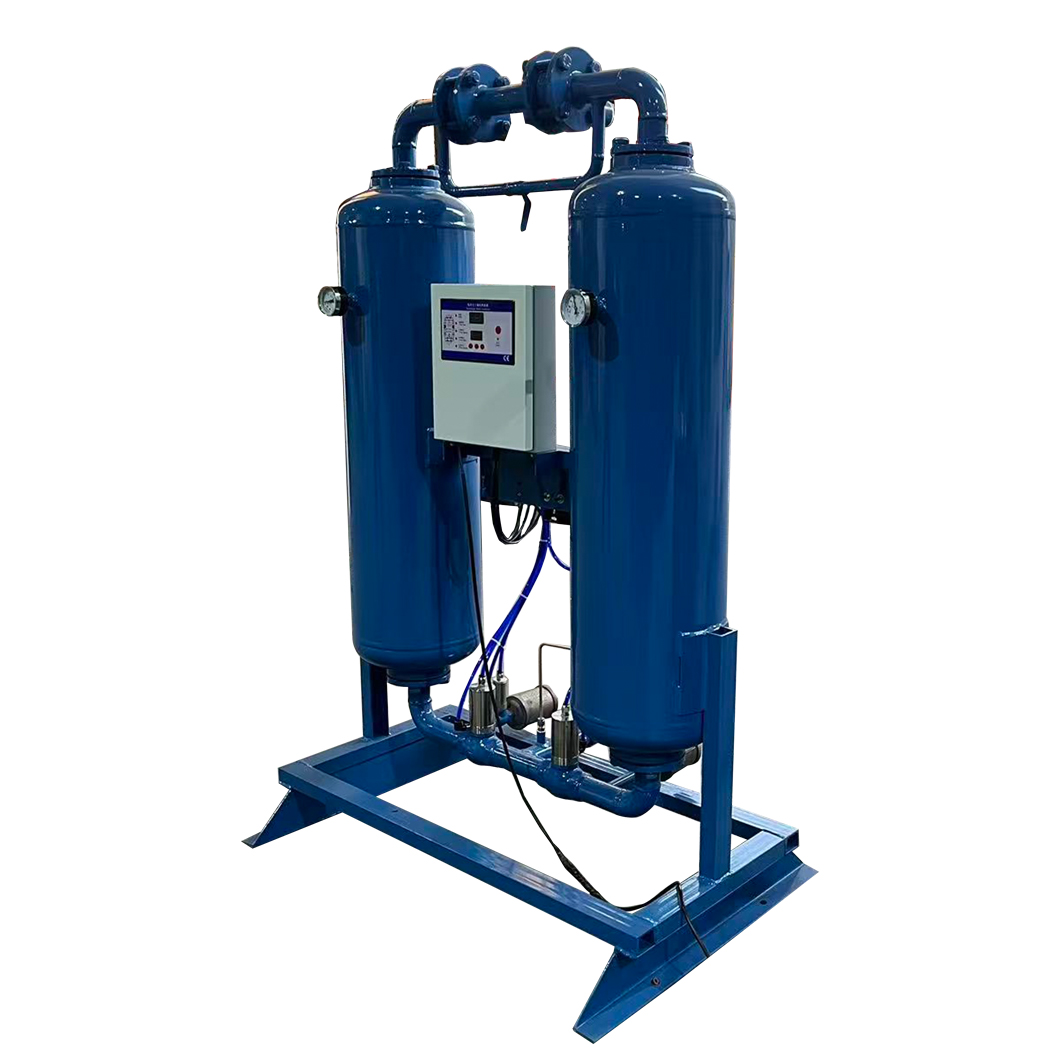

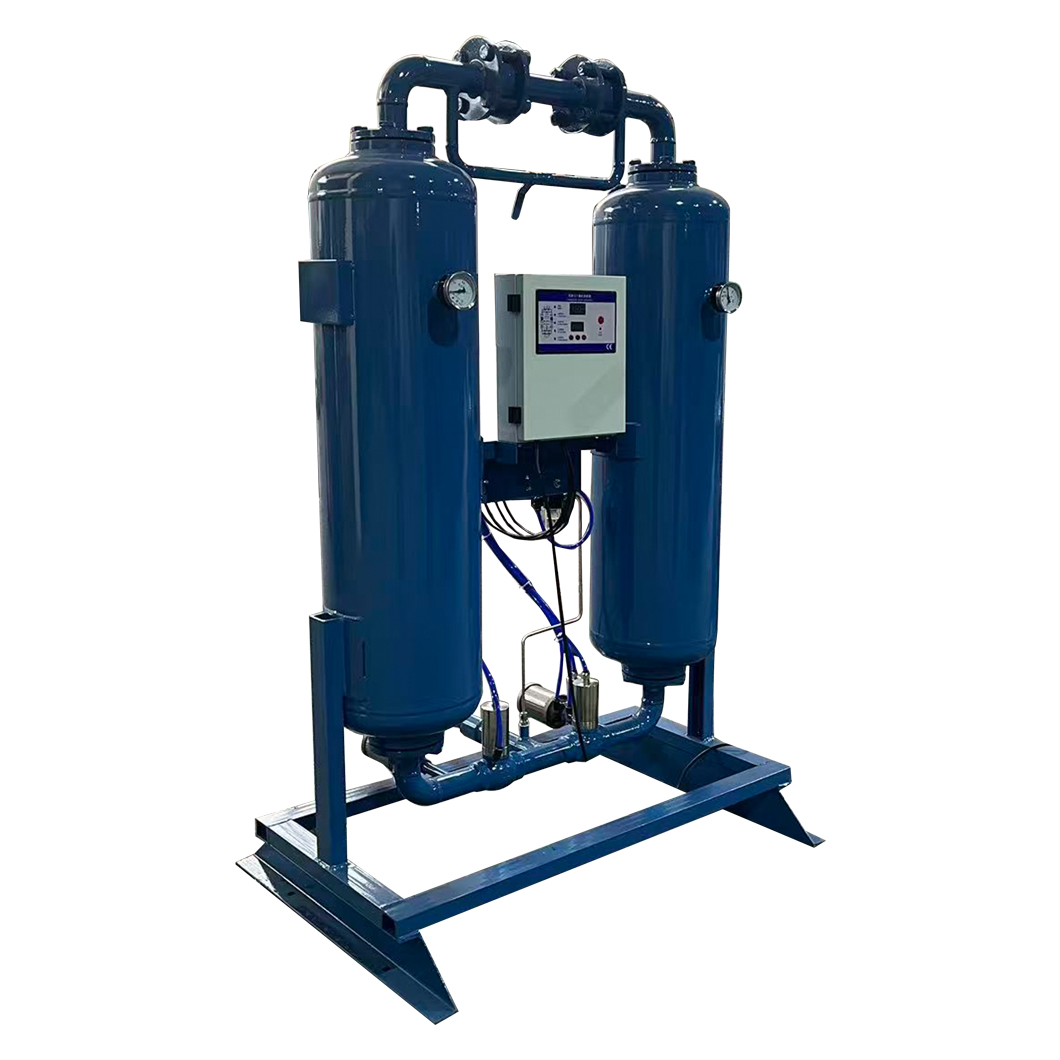

Energy-Saving 1.5nm³/Min Heatless Regeneration Adsorption Air Dryers

Detailed Product Features and Applications

• Drying Principle: Uses Pressure Swing Adsorption (PSA) to achieve efficient air drying without external heating.
• Desiccant Type: Incorporates Activated Aluminum and Molecular Sieve, providing high moisture adsorption capacity and long operational lifespan.
• Purge Air Consumption: Low purge air consumption ≤12–15%, enhancing energy efficiency compared to traditional heatless dryers.
• Outlet Air Dew Point: Achieves stable dew points between -20°C and -40°C, ensuring dry air suitable for sensitive applications.
• Working Pressure: Operates at 0.6–1.6 MPa, suitable for standard industrial compressed air systems.
• Flow Type: Contra-Flow design, optimizing heatless regeneration and desiccant utilization.
• Cooling Method: Air-cooled, eliminating the need for additional water cooling systems and reducing operational costs.
• Power Supply: Compatible with 220 V / 50 Hz electrical systems.
• Operation Period: Cycle duration T=4–20 minutes, allowing flexible scheduling for continuous operation.
• Applications: Ideal for chemical processing, electronics, food, pharmaceutical, and general automation industries.

Additional Highlights

• Energy Efficiency: Advanced design minimizes energy loss and reduces operating costs while maintaining high performance.
• Durable Construction: Constructed with enclosed structure and corrosion-resistant materials, ensuring longevity in industrial environments.
• Customizable Options: Supports customized specifications to match various flow rates, pressures, and operational requirements.

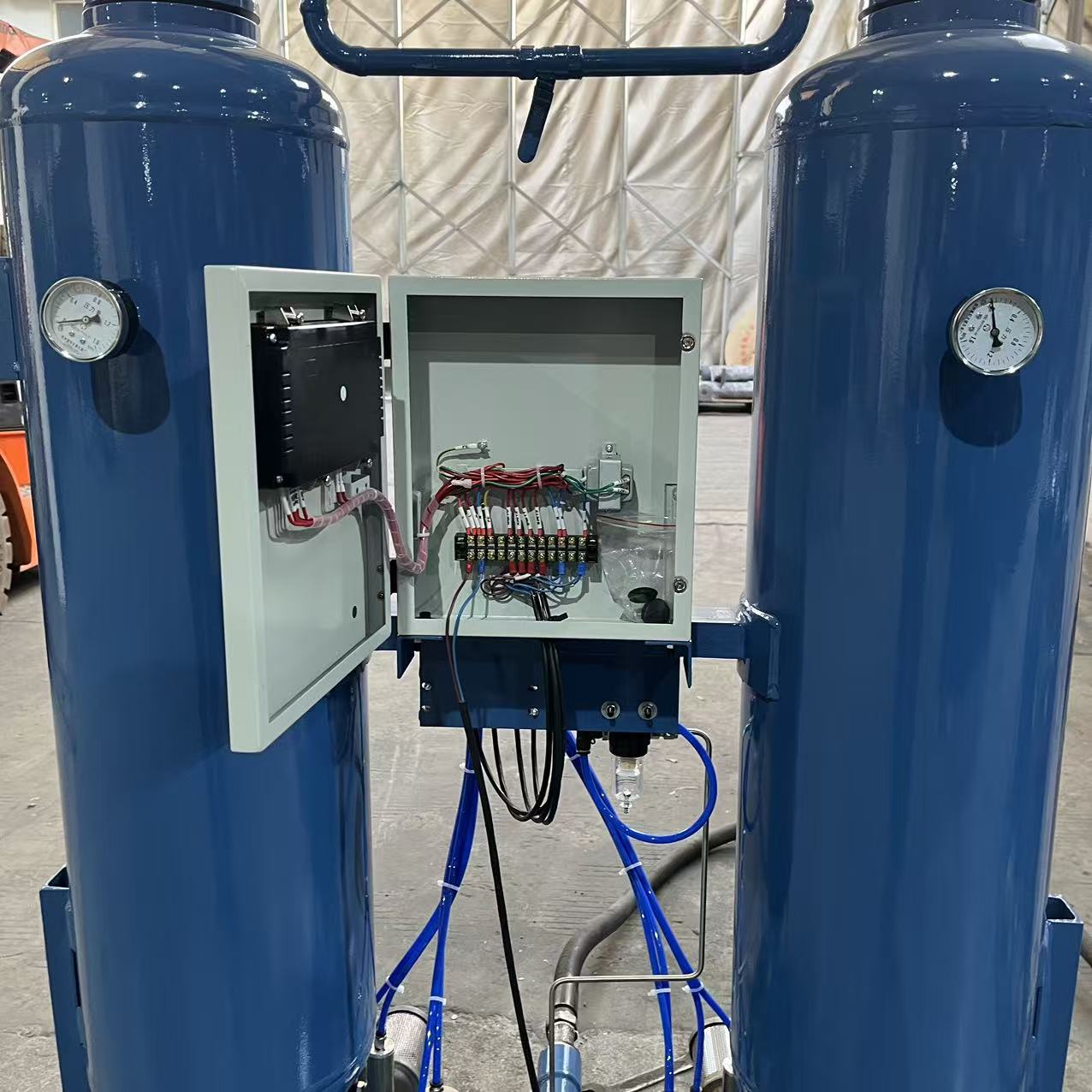

• Maintenance and Monitoring: Equipped with standard connections and accessible desiccant towers, facilitating easy maintenance and inspection.
• Transport and Packaging: Delivered in wooden packaging for secure shipping and protection during transport.

Comparison with Similar Products

Frequently Asked Questions

Q1: What industries are suitable for the Energy-Saving 1.5nm³/Min Heatless Regeneration Adsorption Air Dryer?

A: This dryer is suitable for chemical processing, electronics, food, pharmaceutical, and general automation industries where dry, oil-free compressed air is required.

Q2: How does the heatless regeneration process work?

A: A portion of the dried compressed air is expanded to atmospheric pressure to become even drier and passes through the desiccant to remove accumulated moisture, regenerating the dryer without external heat.

Q3: What is the typical dew point achieved by this dryer?

A: The outlet compressed air dew point ranges between -20°C and -40°C, depending on operational parameters and environmental conditions.

Q4: How energy-efficient is this dryer compared to traditional models?

A: With a low purge air consumption of ≤12–15%, this heatless regeneration dryer is more energy-efficient than conventional heatless dryers, reducing operating costs.

Q5: Can this dryer be customized for different flow rates or pressures?

A: Yes, the dryer supports customized specifications, allowing adjustments for flow rate, working pressure, and specific industrial requirements.
