Special equipment for biogas. Exd IIB/IIC T4-certified, continuous operation, low energy consumption, and high drying efficiency.
Inquiry
Product Description
Product Description (Full Version)

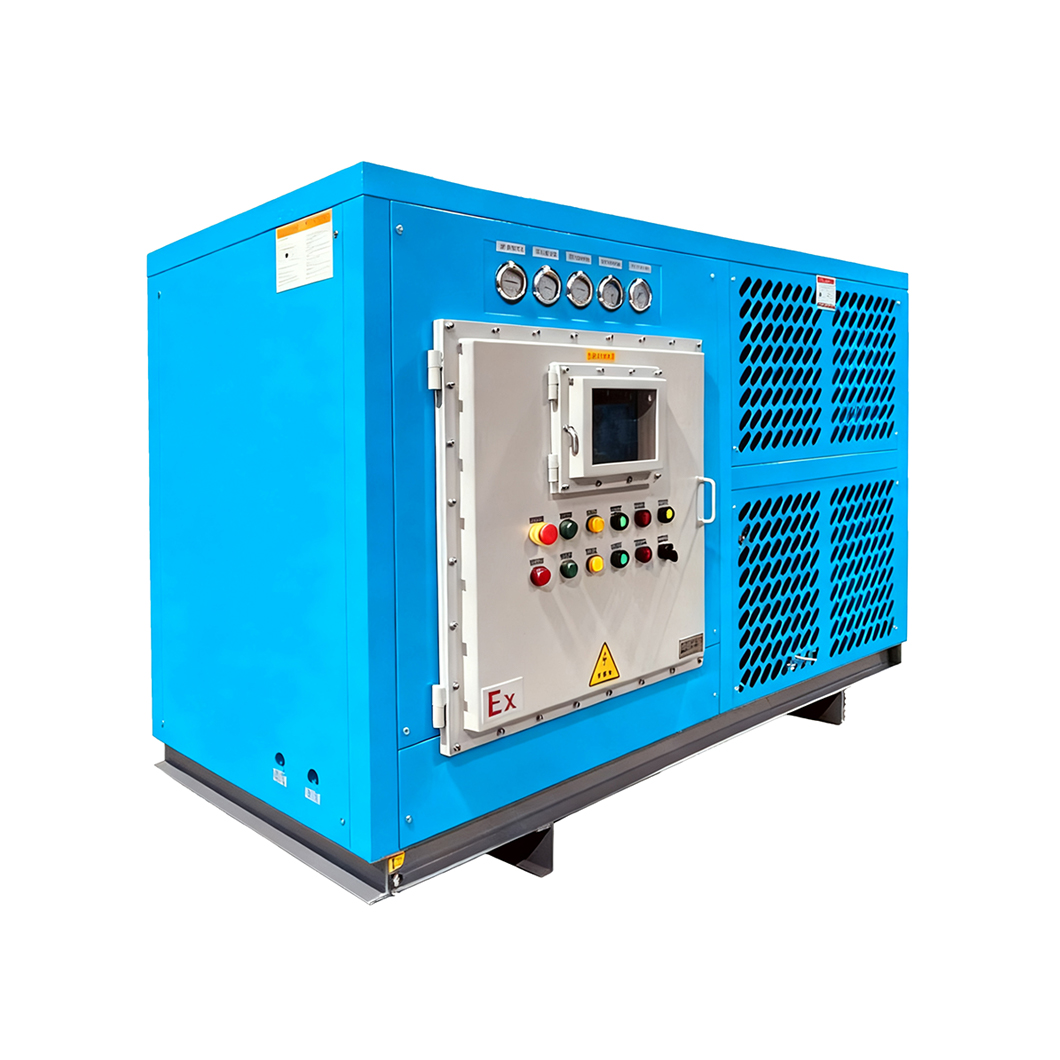

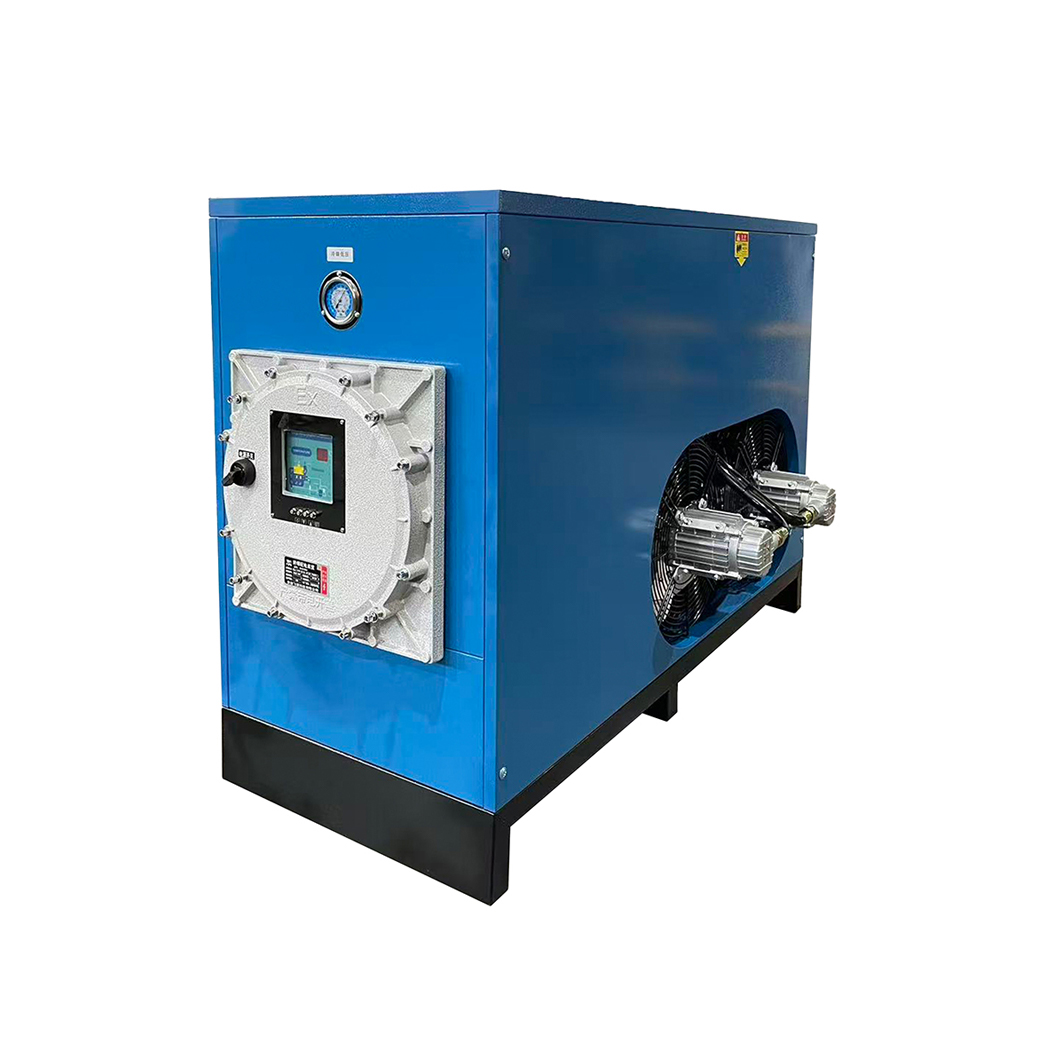

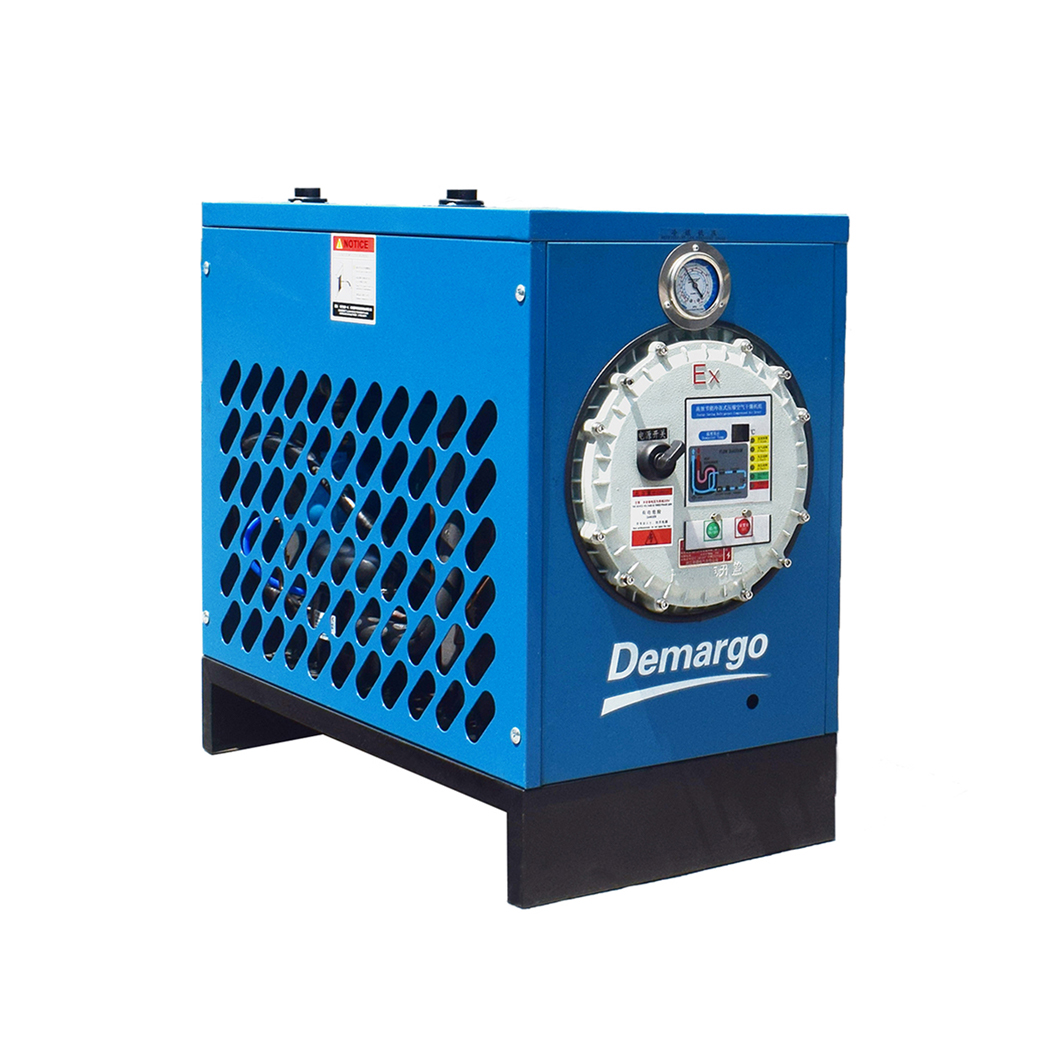

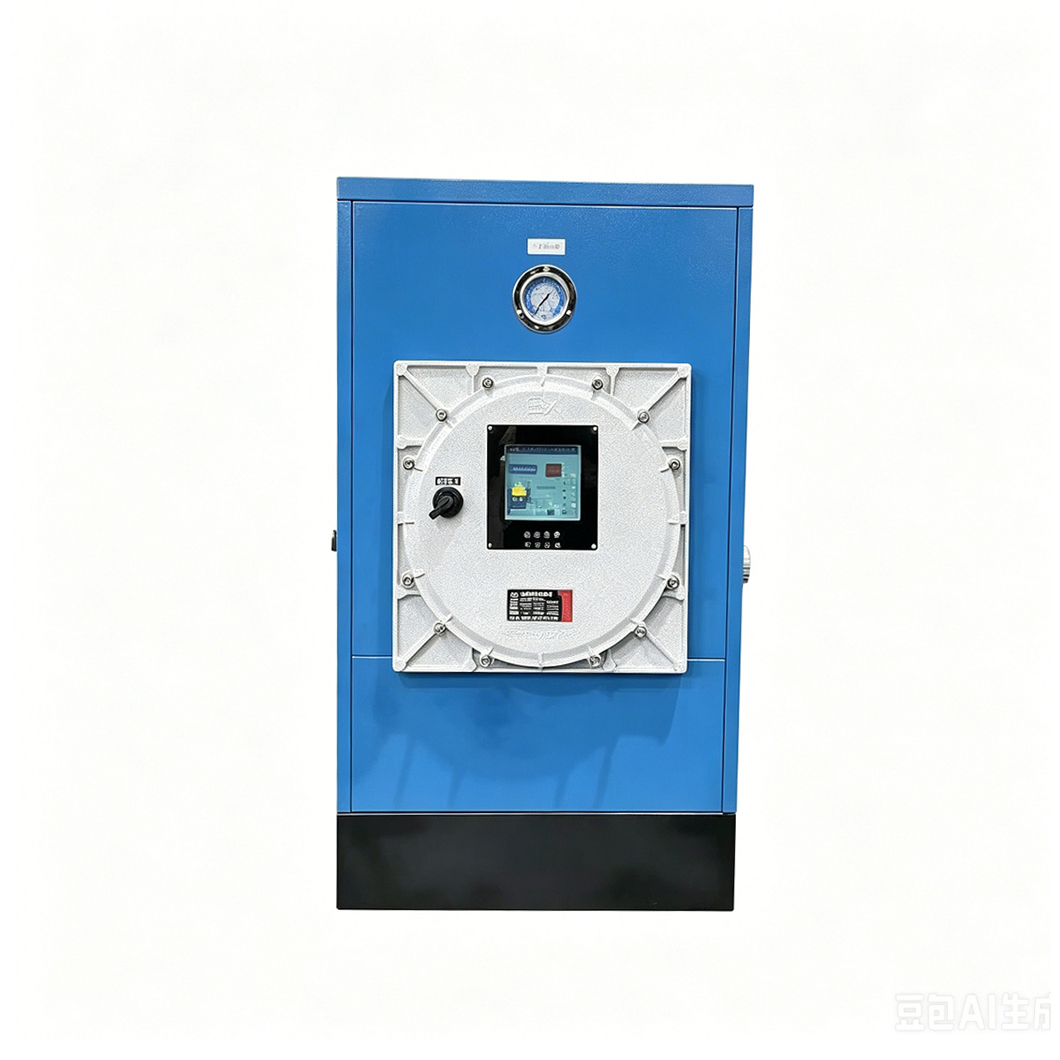

What is an Explosion-Proof Refrigerated Air Dryer for Biogas?
It is an industrial device specially designed for biogas drying in explosive hazardous environments. It effectively removes moisture from biogas, protects equipment, improves operational efficiency, and ensures safe use in Zone 1 and Zone 2 hazardous areas.
Key Advantages
Exd IIB / IIC T4 explosion-proof certification, suitable for Zone 1 and Zone 2 hazardous areas.
Stable dew point from 2 ℃ to 10 ℃.
Optimized design for 24-hour continuous operation.
Automatic drainage without manual intervention.
Suitable for low-pressure biogas working conditions (0.1 bar).
Heavy-duty industrial design for harsh environments.
Industrial Applications
Main Technical Specifications
|
Parameter |
Specification |
|
Model |
DM110GF-FB |
|
Special Application |
Biogas |
|
Max Flow Rate |
40–50 Nm³/h |
|
Working Pressure |
0.1 bar |
|
Dew Point |
2 ℃ – 10 ℃ |
|
Voltage |
AC 440V / 60Hz |
|
Power |
≤ 3 kW |
|
Ambient Temperature |
-20 ℃ to +40 ℃ |
|
Cooling Type |
Air-cooled |
|
Drainage |
Explosion-proof zero air-loss drain valve |
|
Connection |
3" Internal Thread (DN80) |
|
Dimensions |
1450×630×1092 mm |
|
Weight |
230 kg |
Construction Cases
