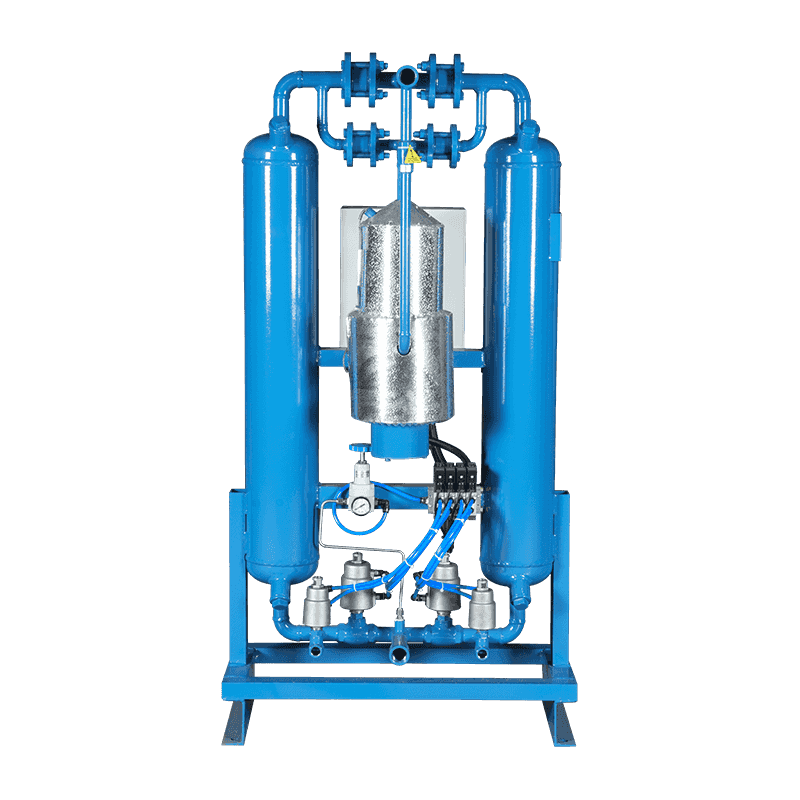

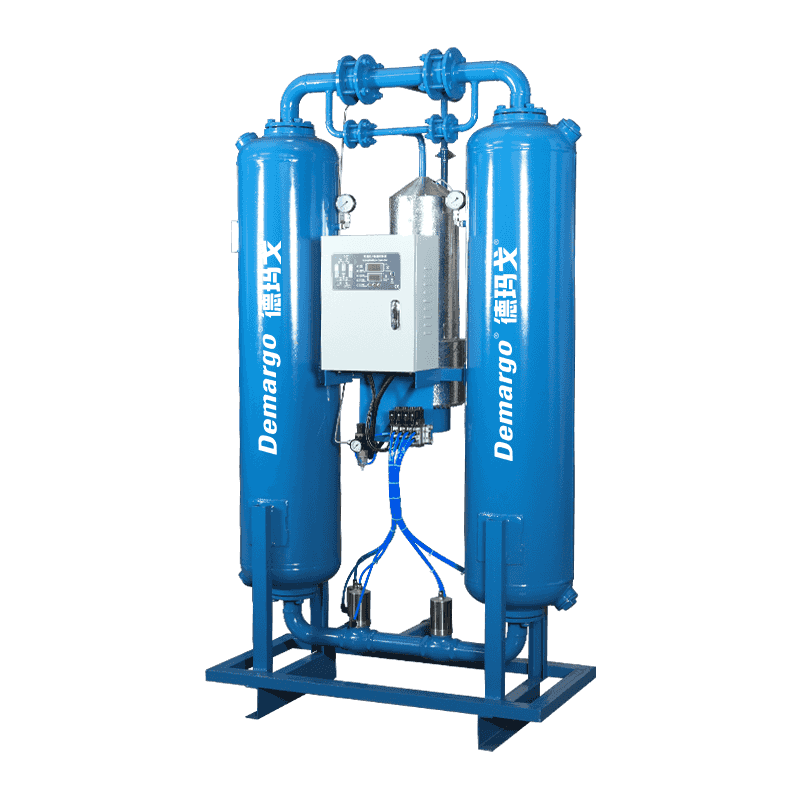

Micro Heat Regeneration Adsorption Dryer

Key Features

• Hybrid Regeneration Method

  • Combines pressure swing adsorption (PSA) and temperature swing adsorption (TSA) principles for superior drying performance.
  • Adsorption (working) occurs at room temperature and higher water-vapor partial pressure.
  • Desorption (regeneration) occurs with slightly heated, low-humidity regeneration gas, improving moisture removal efficiency.

• Energy Efficiency

  • Uses slightly heated purge gas to significantly reduce regeneration gas consumption compared with conventional non-heated (heatless) dryers.
  • Optimized thermal design minimizes fuel/electric heating demand while keeping regeneration effective.

• Stable Switching and Reliability

  • Avoids the short switching-time drawback of pure non-heat regeneration dryers by balancing thermal and pressure mechanisms.
  • Designed for continuous industrial operation with reliable cycle control.

• Wide Industry Applicability

  • Suitable for metallurgy, power generation, electronics, food, chemical, petroleum, pharmaceutical, tobacco, instrumentation, and automation sectors.

• Efficient Moisture Removal Mechanisms

  • Moisture is removed from the adsorbent by thermal diffusion assisted by the high pressure differential of the regeneration gas (heated dry air).

Technical Advantages

• Lower Purge Gas Consumption compared to heatless dryers.
• Improved Dew Point Stability under varying loads.
• Reduced Operating Cost through optimized regeneration heat and gas usage.
• Compact Footprint for micro / small to medium capacity installations.
• Fast, Predictable Cycle Control with minimized moisture breakthrough risk.

Typical Applications

• Compressed air systems for process lines and instrumentation.
• Electronics manufacturing where low moisture is critical.
• Pharmaceutical and food processing for product quality and safety.
• Power plants and metallurgy for pneumatic systems and instrument air.
• Chemical and petroleum facilities requiring stable dew points.

Product Naming & Keywords

• Primary name: Micro Heat Regeneration Adsorption Dryer
• Synonyms / search keywords: micro-heat regenerative dryer, micro heat regenerative adsorption dryer, adsorption dryer, regenerative desiccant dryer, hybrid TSA-PSA dryer, energy-saving desiccant dryer

Recommended Specifications

• Capacity range: 0.1 – 5 m³/min (model-dependent)
• Inlet pressure: 0.6 – 1.6 MPa (standard)
• Operating temperature: 5 – 45 °C
• Outlet dew point: ≤ -20 °C to -40 °C (model-dependent)
• Regeneration method: Slightly heated purge air + pressure differential
• Power supply (heater): 220/380 V, 50/60 Hz (model options)
• Control: PLC/timer with automatic valve switching and safety interlocks

Installation & Maintenance

• Installation: Mount on level foundation; provide clearance for service access and ventilation for heater section.
• Routine maintenance: Periodic checks of valves, heater elements, and adsorbent condition; replace desiccant when dew-point performance degrades.

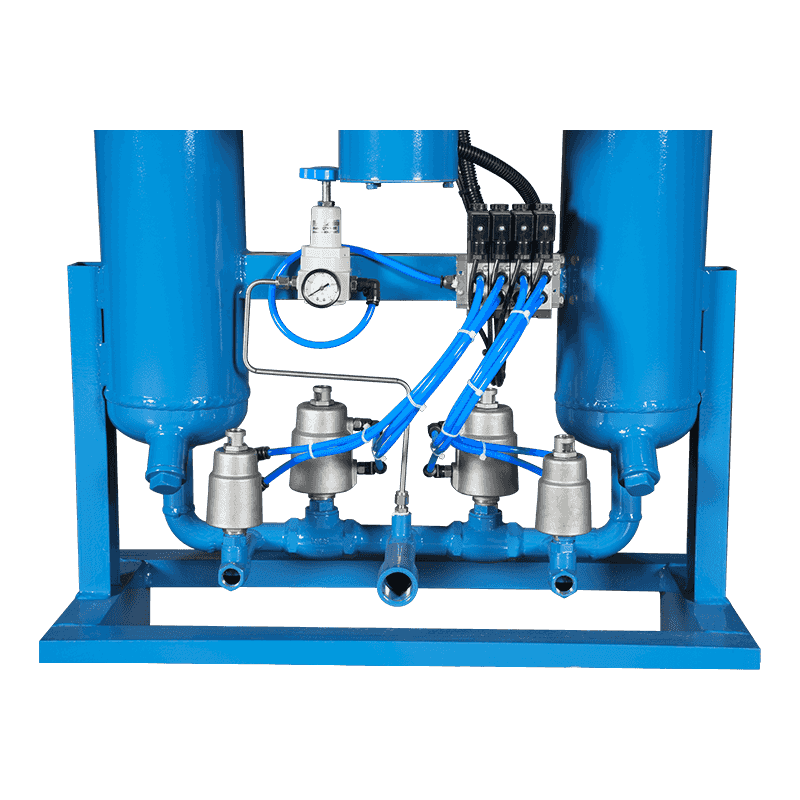

• Spare parts to keep on hand: solenoid valves, heater cartridges, control fuses, desiccant cartridge (if modular)

Ordering Information & Model Selection Tips

• Select based on required flow capacity, target outlet dew point, and inlet air quality (pre-filtration and oil content).
• Specify local power supply, connection sizes, and control options (analog/digital outputs, PLC integration).
• For critical processes, request factory performance curves and site commissioning.

Comparison with Similar Products

Compliance & Safety Notes

• Operate the unit within specified pressure and temperature ranges.
• Ensure proper ventilation around the heater area.
• Follow local electrical and pressure vessel codes for installation and maintenance.
