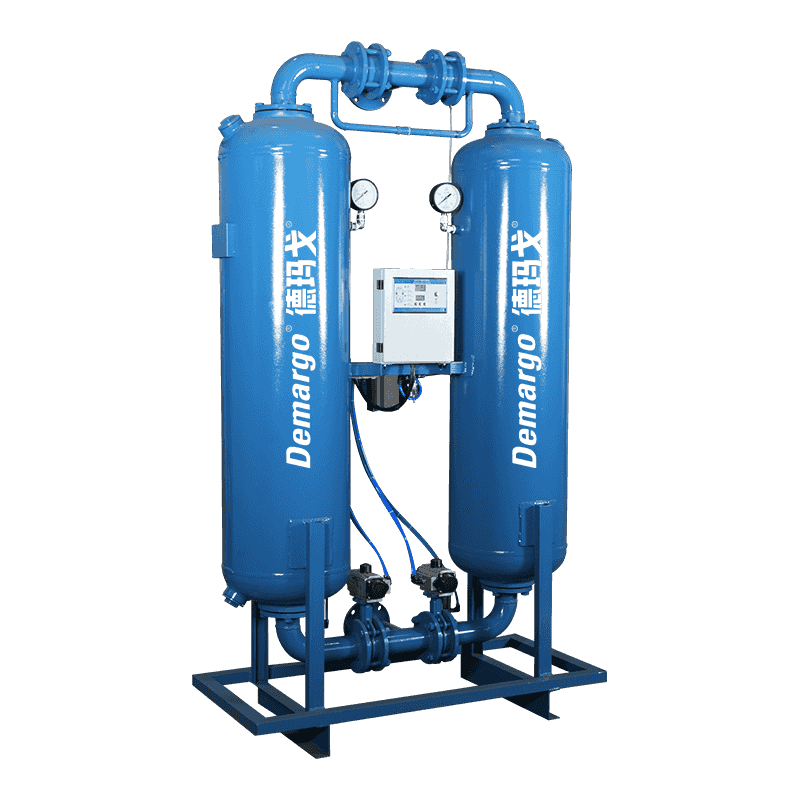

Heatless Regeneration Adsorption Dryer

Detailed Description

• Working Principle: Uses pressure swing adsorption — after the drying tower reaches saturation, a small fraction of the dried compressed air is decompressed and passed through the saturated desiccant bed as regeneration gas, desorbing and removing trapped moisture. Towers alternate to provide uninterrupted drying.
• Desiccant: High-performance molecular sieve or activated alumina carefully packed to maximize surface area and adsorption capacity.
• Regeneration Cycle: Typically controlled by a programmable timer or pneumatic pilot valves; cycle times and purge ratios are adjustable to balance energy/air loss and dryness.
• Purge Method: Fixed purge (percentage of dry air) that is vented to atmosphere after regeneration; no external heater required.

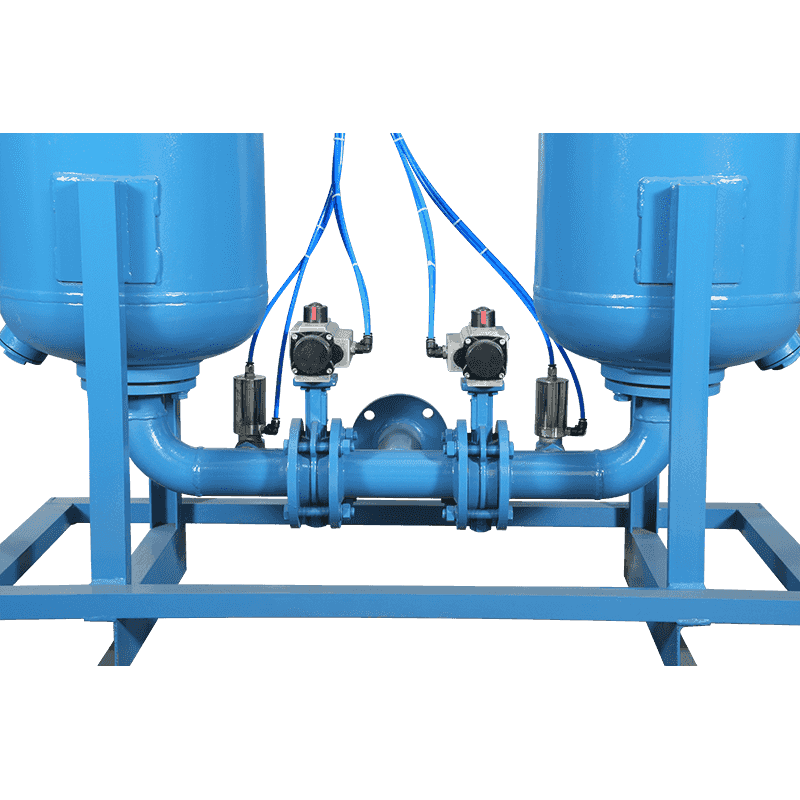

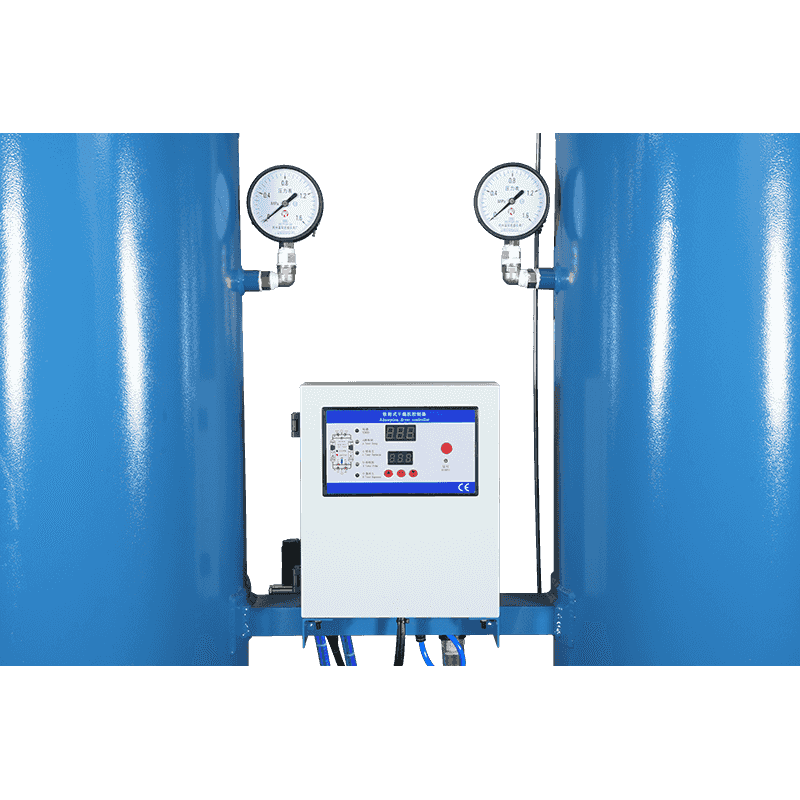

• Control & Valves: Includes automatic switching valves, purge control valve, safety relief valve, and pressure gauges for monitoring.
• Filtration: Integrated pre-filter and after-filter stages recommended to remove oil, particulates and protect desiccant.
• Performance: Achieves pressure dew points typically between -20°C to -70°C (PDP) depending on model, operating pressure, and purge ratio.
• Materials & Construction: Carbon steel or stainless steel vessels with corrosion-resistant internals; industrial-grade piping and fittings.
• Serviceability: Modular internals and easy-access towers for desiccant replacement and maintenance.

Key Features

• Oil-free, particle-free dry air output.
• Simple, robust design with few moving parts.
• Wide operating pressure range (commonly 4–16 barG; model-dependent).
• Adjustable purge/cycle times to optimize air consumption.
• Low capital cost and compact footprint versus heated/regenerative alternatives.
• Safe operation — no electrical heaters in the regeneration circuit.

Technical Specifications (typical)

Applications

• Instrument air for control valves and pneumatic instruments.
• Paint booths & finishing where moisture causes defects.
• Pharmaceutical and food production requiring dry, clean air.
• Gas sampling and analysis lines.
• Compressed air systems in cold environments where condensate freeze is a risk.

Installation & Maintenance

• Placement: Install indoors or protected area; maintain free airflow around vessels and control panels.
• Pre-treatment: Fit a coalescing pre-filter and refrigerated dryer if necessary to remove bulk condensate and oil to protect desiccant life.
• Routine Checks: Monitor inlet/outlet pressure, PDP, purge valve operation, and desiccant condition. Replace desiccant per operational indicators or manufacturer schedule.
• Spare Parts: Keep critical spares (pilot valves, purge valves, pressure gauges, seals) on hand to reduce downtime.
• Safety: Ensure relief valves are installed and vent lines are unobstructed.

Safety & Compliance

• Built to industrial safety standards; can be supplied to meet CE, ASME, or local pressure-vessel regulations on request.
• Provide safety relief valves and grounding as required.
• Follow local codes for atmospheric venting of purge air if environment or regulations require treatment.

Optional Accessories & Upgrades

• PLC control with remote monitoring / alarm.
• Dew point sensor with display and logging.
• Low-purge or energy-saving control packages to reduce purge loss.
• Stainless steel internals for corrosive or food-grade applications.
• Integrated pre- and post-filtration modules.

Advantages

• No external heat source → simpler and safer installation.
• Low maintenance compared with heated regenerative systems.
• Lower capital cost for many flow ranges.
• Proven, mature technology with wide spare-part availability.

Limitations

• Continuous purge loss reduces overall system efficiency (typical 8–20% of product flow).
• Not optimal where ultra-low energy use is required — heat-regenerated systems or blower-purged variants may be more efficient.
• Desiccant life depends heavily on upstream filtration quality.

Comparison with Similar Drying Technologies

Model Selection & Ordering Guidance

• Select based on nominal flow (Nm³/h), required PDP, and available operating pressure.
• Specify inlet air quality (oil/vapor content, particulate) so the supplier can recommend pre-filtration.
• Consider energy-cost trade-offs: for high annual run-hours, evaluate heat-regenerative or blower-purge alternatives to reduce purge losses.

Why Choose This Model

• Reliable, field-proven design, simple controls and wide serviceability make the Heatless Regeneration Adsorption Dryer an excellent choice where safety, simplicity and low upfront cost are priorities. For applications demanding minimal operating air loss or ultra-low energy consumption, consider heat-regenerative or blower-purge alternatives listed in the comparison.
