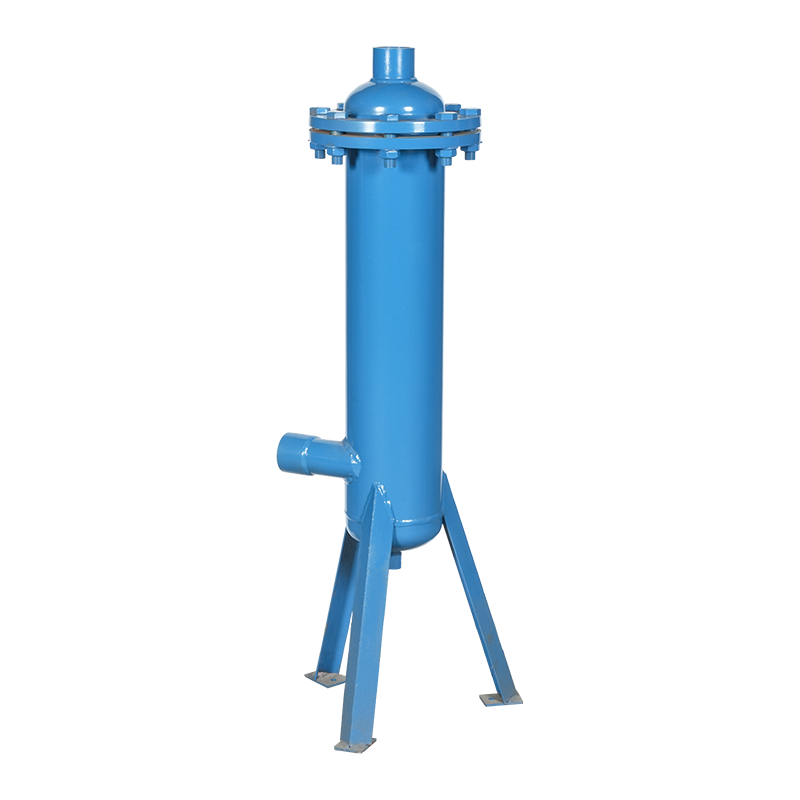

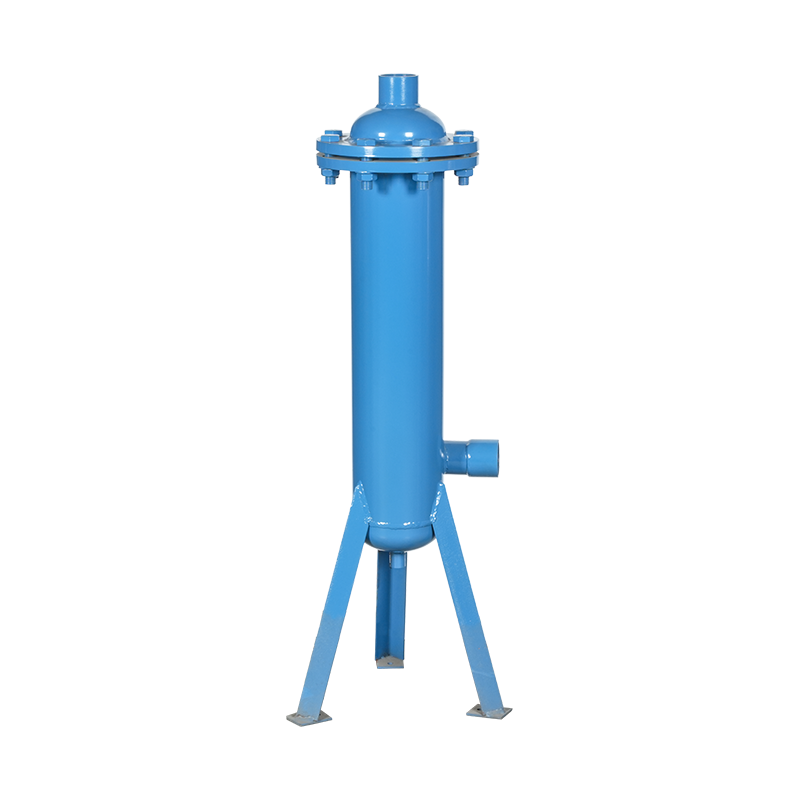

Compressed air oil-water separator is a new type of compressed air oil-water separator developed by our company by absorbing and digesting the advanced technology of foreign compressed air oil-water separators and integrating the essence of advanced structures. The product uses wire mesh to remove the foam inside, and the shell uses a steel welded tank structure. The general use pressure is 1.0Mpa. The YF series compressed air oil-water separator also uses direct interception, inertial collision, Brownian diffusion, and condensation mechanisms to effectively remove dust, water, and oil mist in compressed air. The product has a large water output and a large oil removal capacity and is suitable for a wide range of industrial and mining applications.
Inquiry
Product Description
Working conditions and technical indicators |
|
Inlet pressure |
0.4 ~ 1.0Mpa |
Inlet temperature |
5 ~ 65℃ |
Initial pressure drop |
≤0.005Mpa |
Filtration aperture |
5um |
Water removal rate |
≥99% |
Outlet air oil content |
≤10ppm |
Model | DYF12 | DYF24 | DYF38 | DYF65 | DYF110 | DYF150 | DYF200 | DYF300 | DYF400 | DYF600 | DYF800 | DYF1000 | DYF1500 | DYF2000 | DYF2500 | DYF3000 | |
Capacity (Nm3/min) | 1.2 | 2.4 | 3.8 | 6.5 | 11 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | |
Air connection | ZG1” | ZG1” | ZG1” | ZG1"-1/2" | ZG2” | DN65 | DN80 | DN80 | DN100 | DN125 | DN125 | DN15 | DN200 | DN200 | DN250 | DN250 | |
Draining connection | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | |
Net weight (Kg) | 24 | 28 | 36 | 48 | 72 | 78 | 90 | 106 | 136 | 150 | 182 | 221 | 235 | 260 | 305 | 340 | |
Dimensions (mm) | Length | 245 | 245 | 245 | 245 | 335 | 365 | 390 | 440 | 500 | 565 | 670 | 780 | 870 | 870 | 910 | 910 |
Width | 133 | 133 | 133 | 159 | 159 | 159 | 219 | 219 | 325 | 377 | 462 | 616 | 716 | 716 | 740 | 740 | |
Height | 530 | 530 | 580 | 571 | 1035 | 1139 | 1139 | 1180 | 1230 | 1250 | 1270 | 1550 | 1830 | 1850 | 1900 | 2210 |
