G series precision filters provide users with high-quality compressed air filtration, especially used in laser cutting, bottle blowing, advanced spraying, food, electronics, petrochemical, and other industries. By installing DFG series precision filters, compressor air pollutants (such as oil, water, dust, etc.) can be effectively removed.
Inquiry
Product Description
Filter accuracy requirements |
|
Inlet temperature |
≤80℃ |
Inlet pressure |
0.6~1.6Mpa |

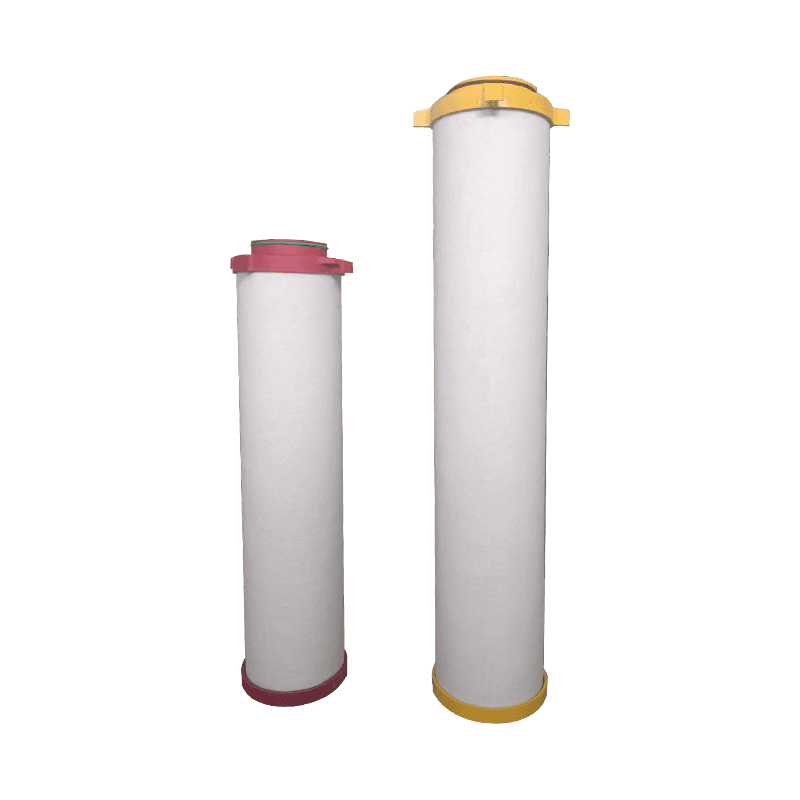

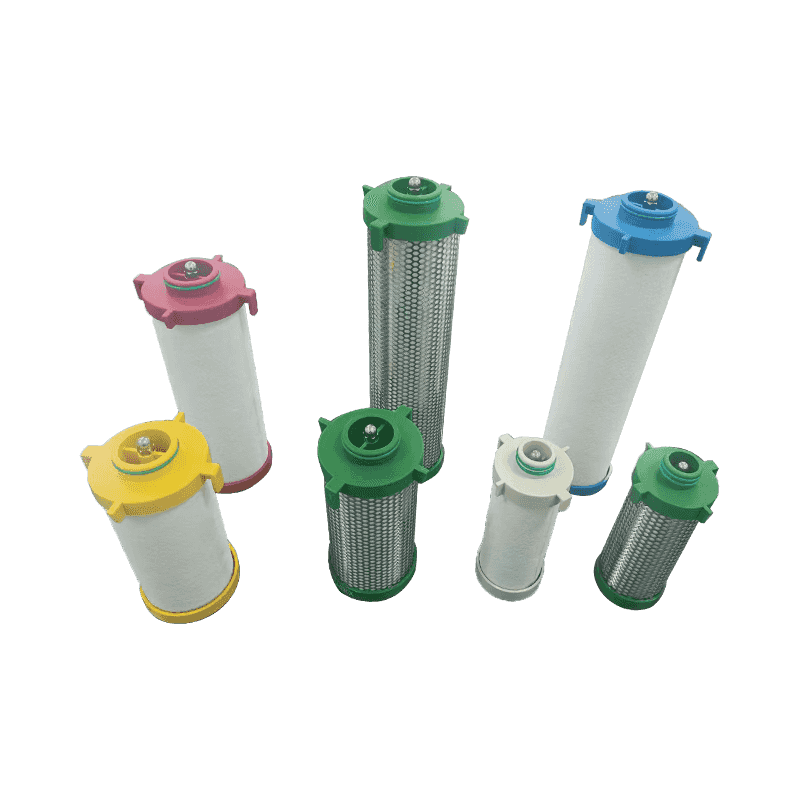

Filter model | Flow m3/M | Interface C | Type of filter element | H | W | A | B |
DF*-005G | 0.7 | 1/2* | FJ-005* | 165 | 74 | 22 | 42 |
DF*-001G | 1.5 | 1/2" 3/4" 1" | FJ-010* | 240 | 95 | 32 | 51 |
DF*-002G | 2.5 | 1/2" 3/4" 1" | FJ-020* | 280 | 95 | 32 | 51 |
DF*-004G | 4 | 1-1/2" | FJ-030* | 302 | 125 | 38 | 65 |
DF*-006G | 6.5 | 1-1/2" | FJ-050* | 421 | 125 | 38 | 65 |
DF*-008G | 8.5 | 1-1/2" | FJ-070* | 421 | 125 | 38 | 65 |
DF*-010G | 13.8 | 2" | FJ-110* | 550 | 170 | 46 | 82 |
DF*-015G | 16 | 2" | FJ-150* | 550 | 170 | 46 | 82 |
DF*-020G | 21 | 2-1/2" | FJX-200* | 640 | 205 | 60 | 100 |
DF*-025G | 26 | 2-1/2" | FJX-250* | 640 | 205 | 60 | 100 |
DF*-030G | 30 | 3" | FJX-300* | 792 | 205 | 60 | 100 |
DF*-040G | 40 | 4" | FJX-400* | 840 | 208 | 85 | 110 |
Filter model | Flow m3/M | Interface C | Type of filter element | H | W | A | B |
DF*-020FG | 21 | DN65 | FJX-200* | 640 | 438 | 92.5 | 92.5 |
DF*-025FG | 26 | DN65 | FJX-250* | 640 | 438 | 92.5 | 92.5 |
DF*-030FG | 30 | DN80 | FJX-300* | 792 | 438 | 99.5 | 99.5 |
DF*-040FG | 40 | DN100 | FJX-400* | 840 | 450 | 150 | 150 |
