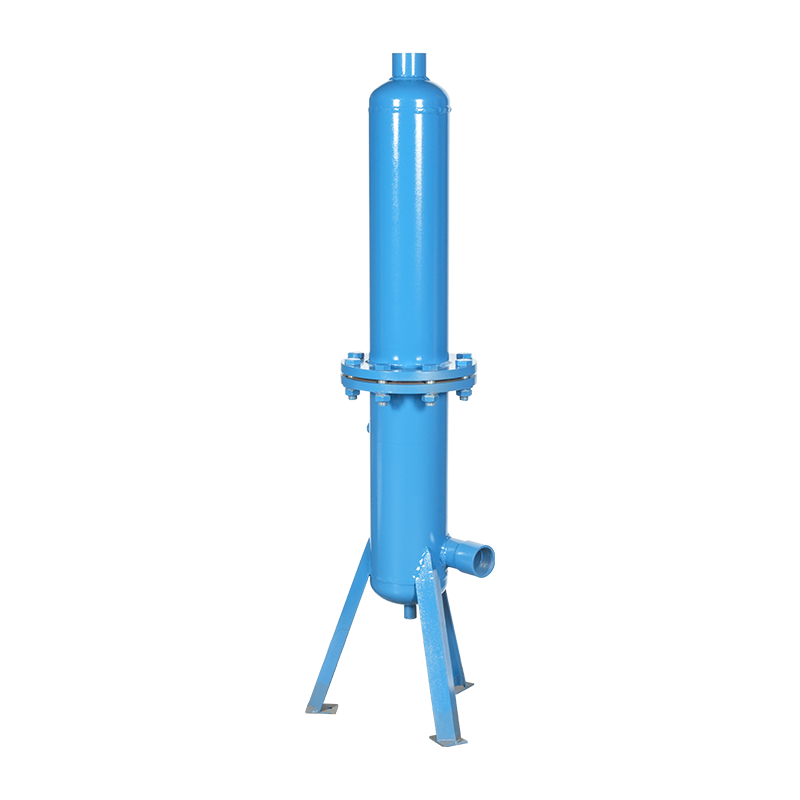

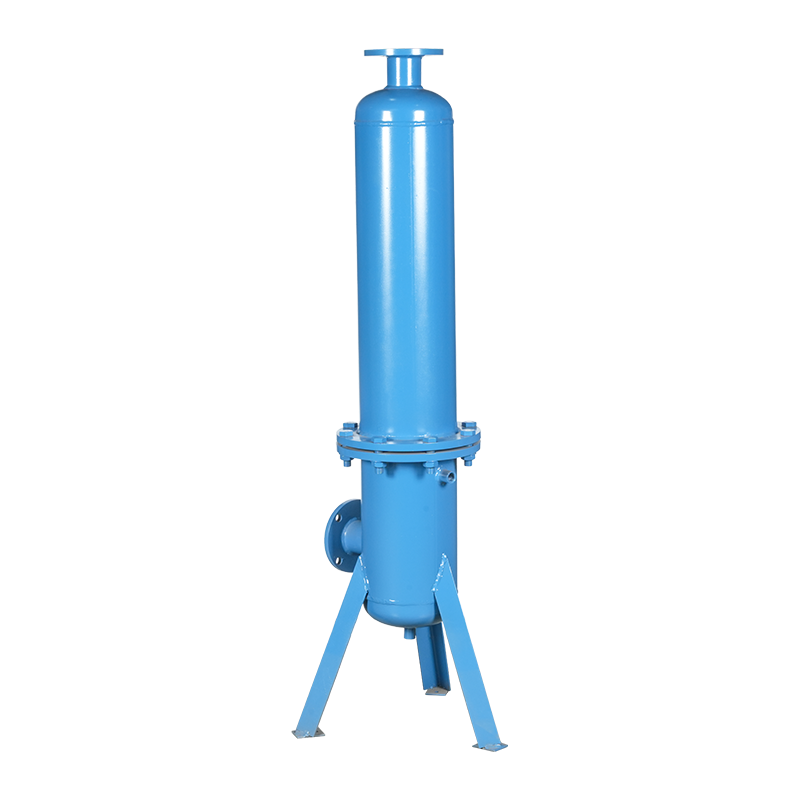

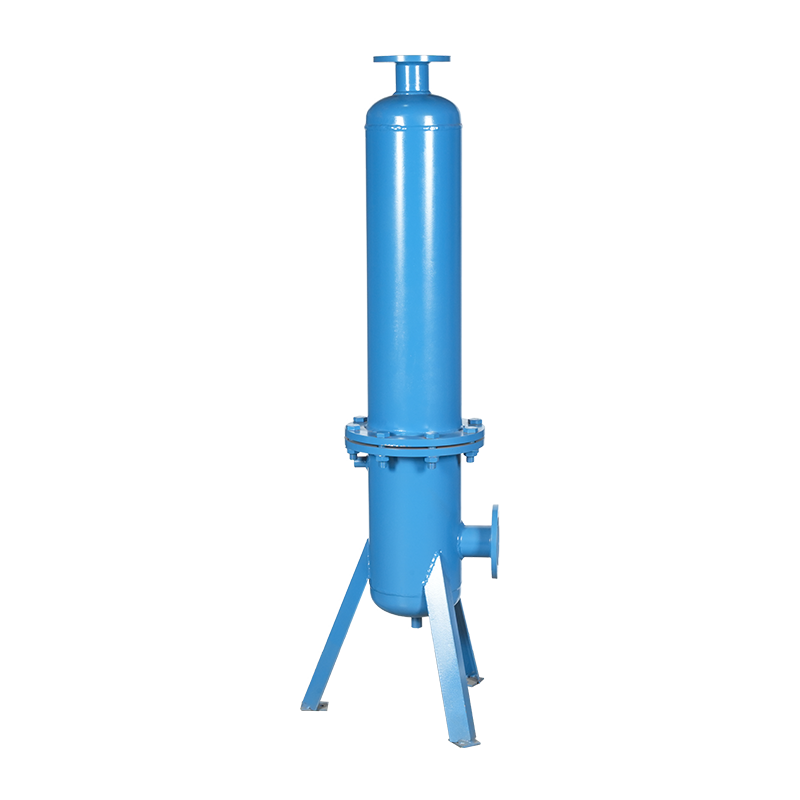

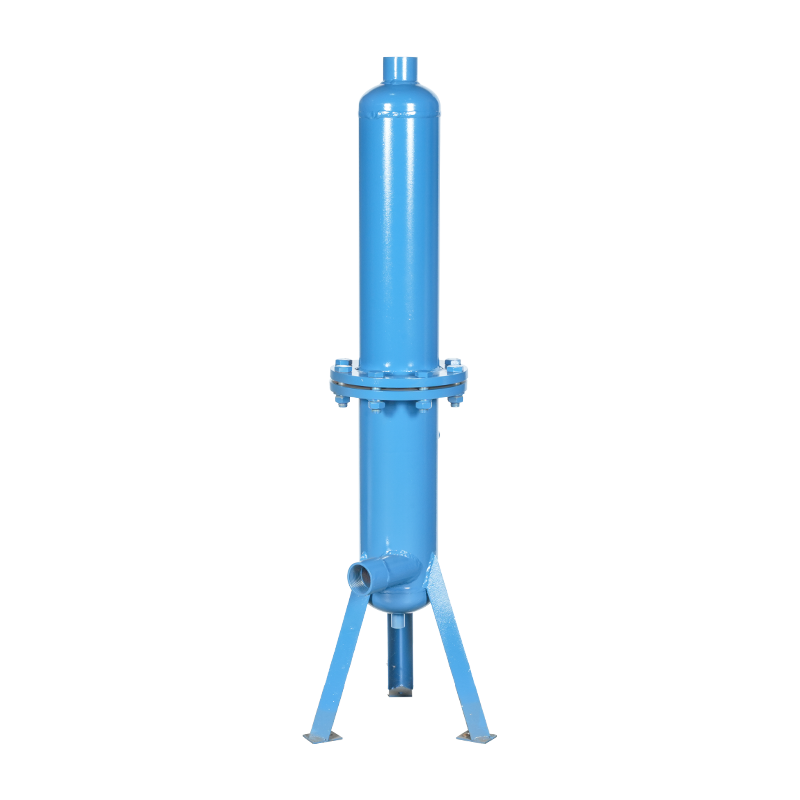

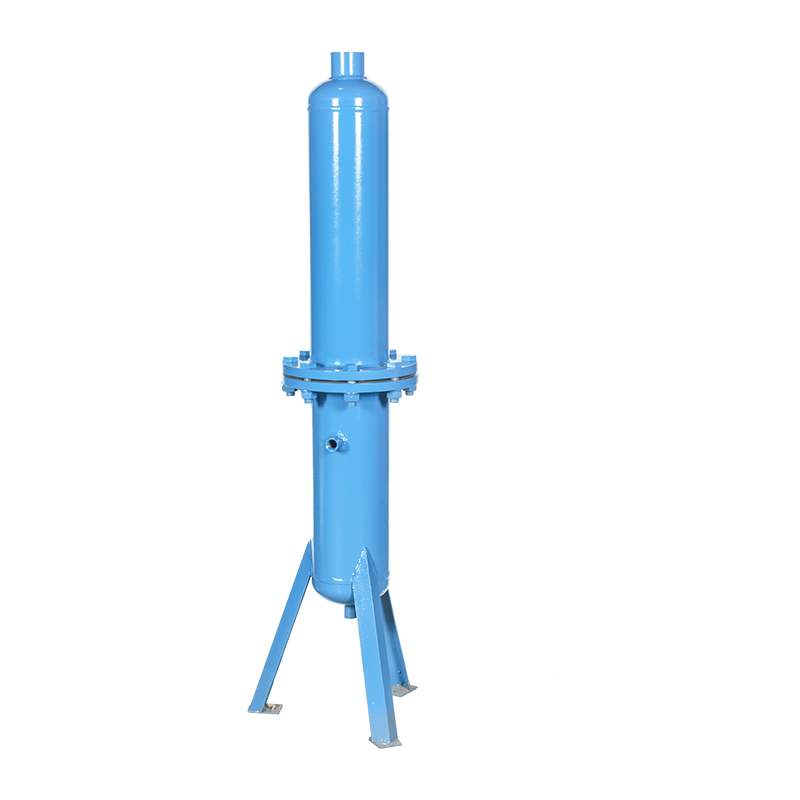

GR series products use ultra-fine fibers as the main material and adopt three-stage purification of centrifugal separation, pre-filtration, and fine filtration. They can more thoroughly remove oil, water, and dust from compressed air and obtain ultra-clean dry compressed air. The filtration accuracy can reach 0.01um and the residual oil content is less than 0.1mg/m3.
Inquiry
Product Description
|
Working conditions and technical indicators |
|
|
Inlet pressure |
0.4 ~ 1.0Mpa |
|
Inlet temperature |
5 ~ 65℃ |
|
Initial pressure drop |
≤0.005Mpa |
|
Filtration aperture |
5um |
|
Water removal rate |
≥99% |
|
Outlet air oil content |
≤10ppm |
| Model | DM15GR | DM26GR | DM40GR | DM65GR | DM110GR | DM150GR | DM200GR | DM300GR | DM400GR | DM500GR | DM600GR | DM800GR | DM1000GR | DM1500GR | DM2000GR | |
| Capacity (Nm3/min) | 1.5 | 2.4 | 3.8 | 6.5 | 11 | 16 | 23 | 35 | 45 | 55 | 60 | 80 | 100 | 150 | 200 | |
| Air connection | ZG1” | ZG1” | ZG1-1/2" | ZG1-1/2" | ZG2” | DN80 | DN80 | DN80 | DN100 | DN125 | DN125 | DN150 | DN200 | DN200 | DN200 | |
| Draining connection | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | ZG½" | |
| Dimensions (mm) | Length | 195 | 270 | 270 | 300 | 360 | 425 | 425 | 425 | 460 | 529 | 730 | 730 | 730 | 840 | 840 |
| Width | 133 | 133 | 133 | 159 | 219 | 273 | 273 | 273 | 325 | 377 | 529 | 529 | 529 | 630 | 630 | |
| Height | 646 | 660 | 660 | 1300 | 1555 | 1555 | 1555 | 1795 | 1665 | 1750 | 1750 | 1950 | 2100 | 2150 | 2435 | |
