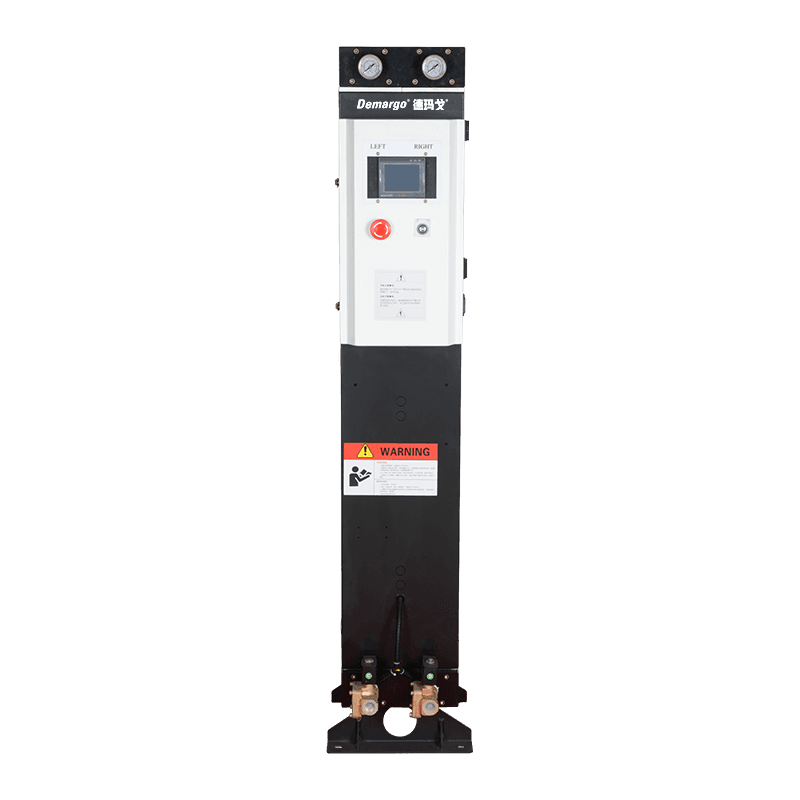

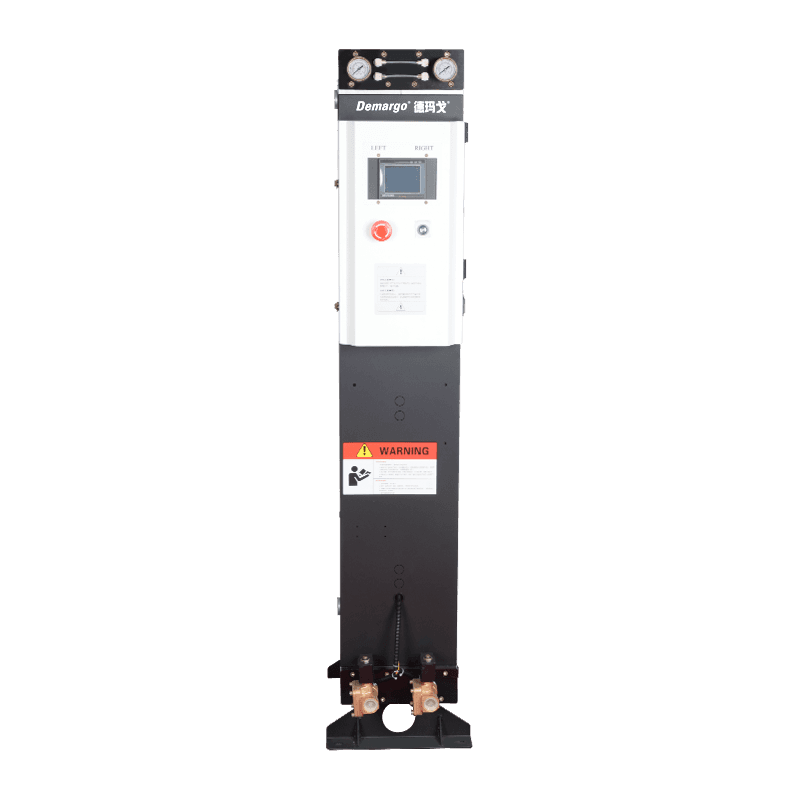

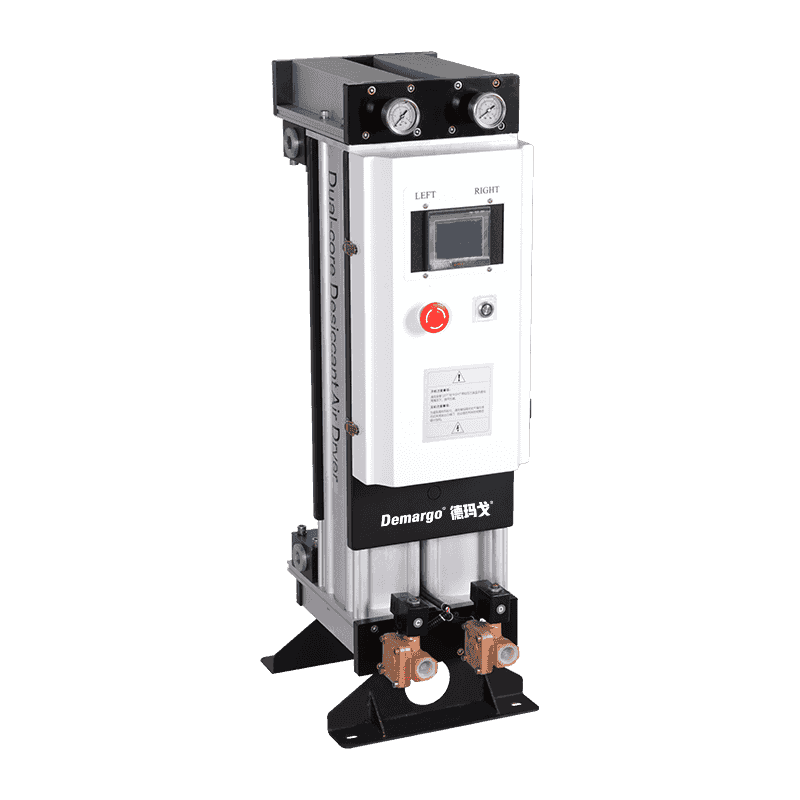

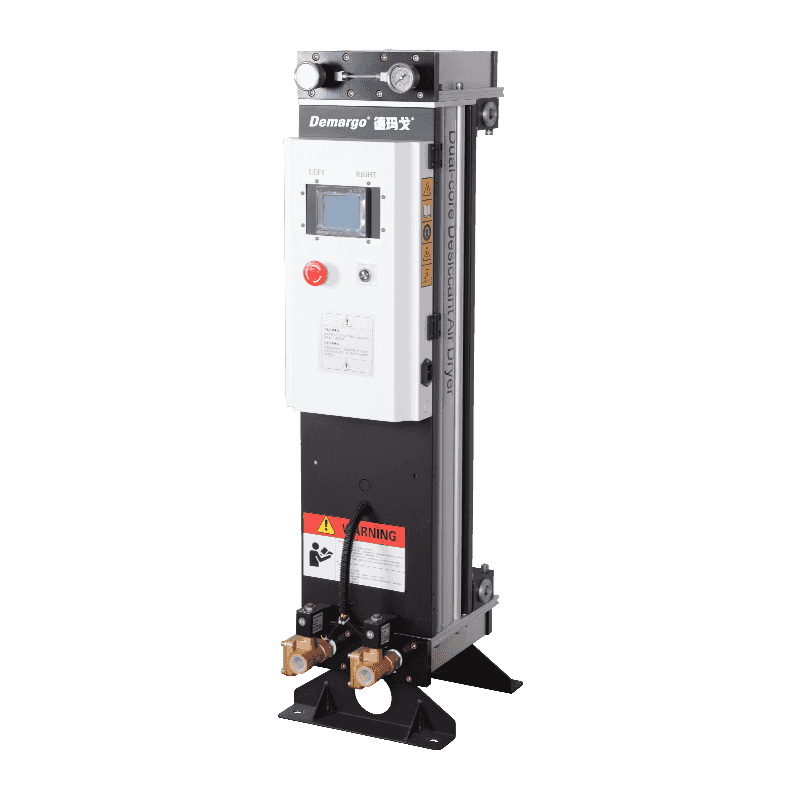

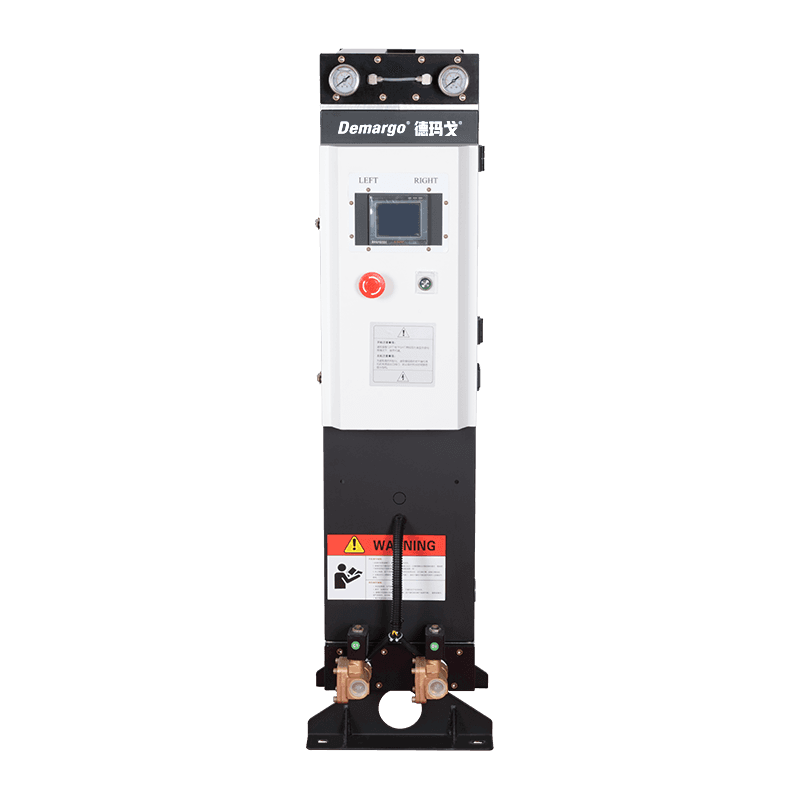

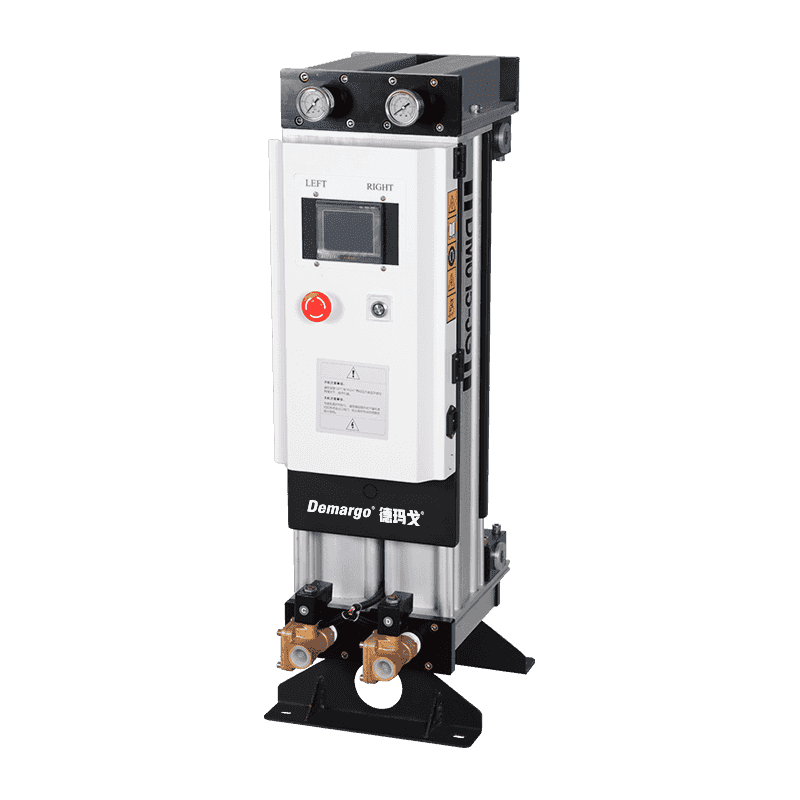

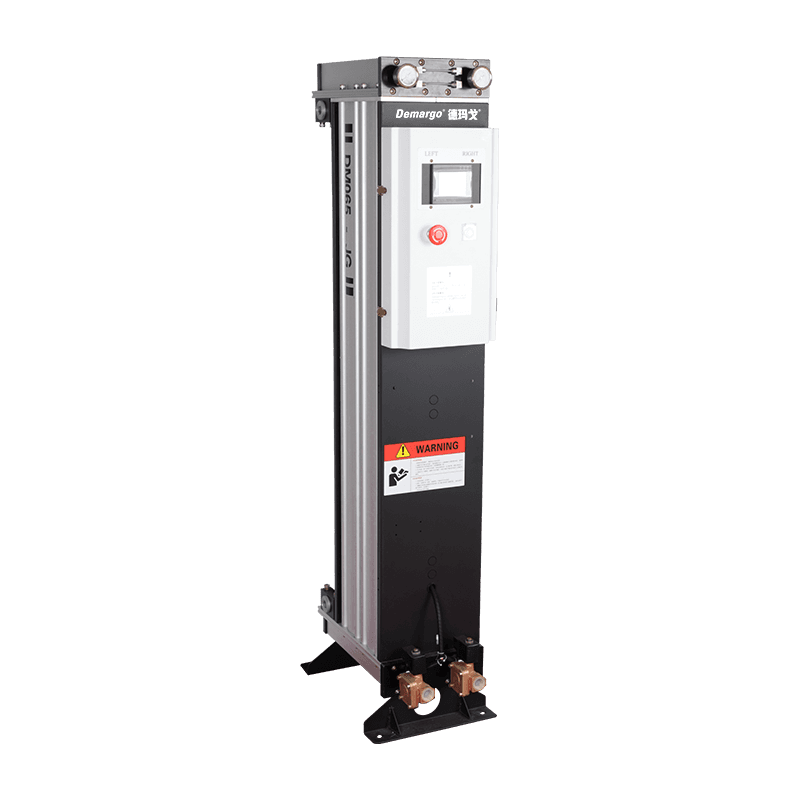

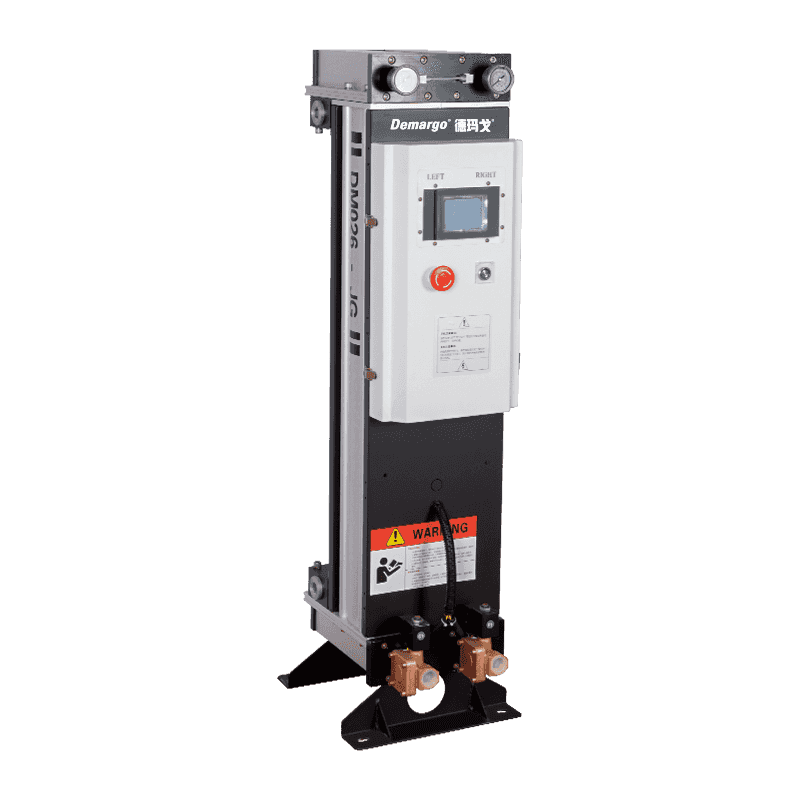

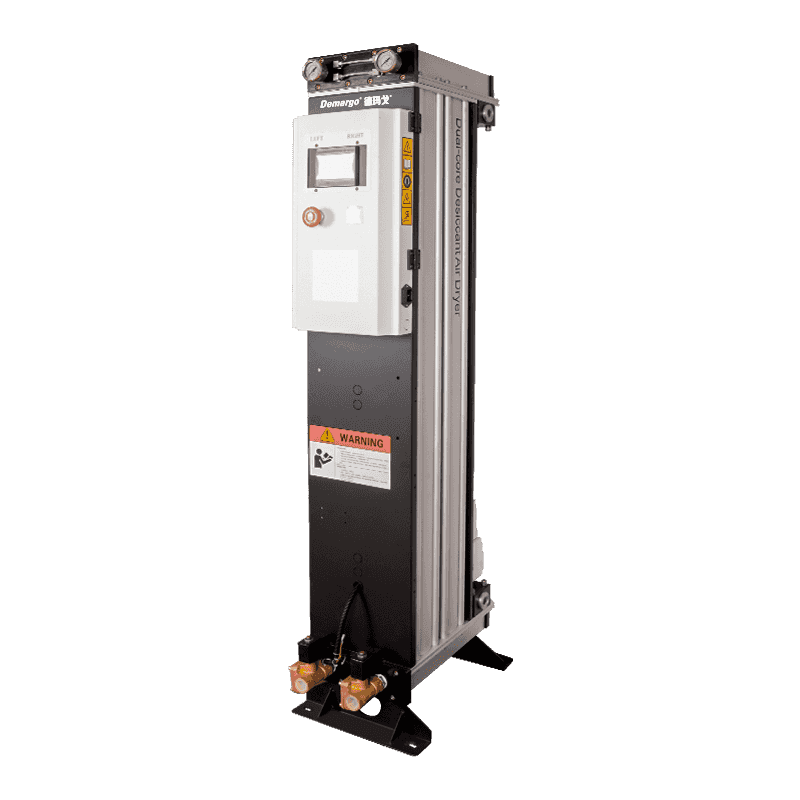

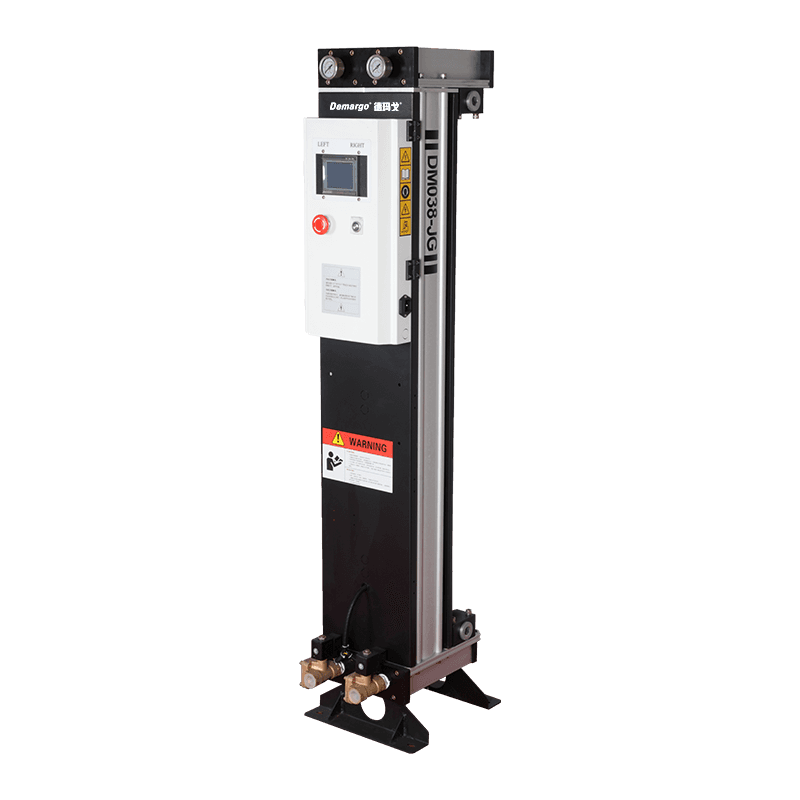

1. The dryer is small in size and easy to install, suitable for use with laser cutting machines and related equipment

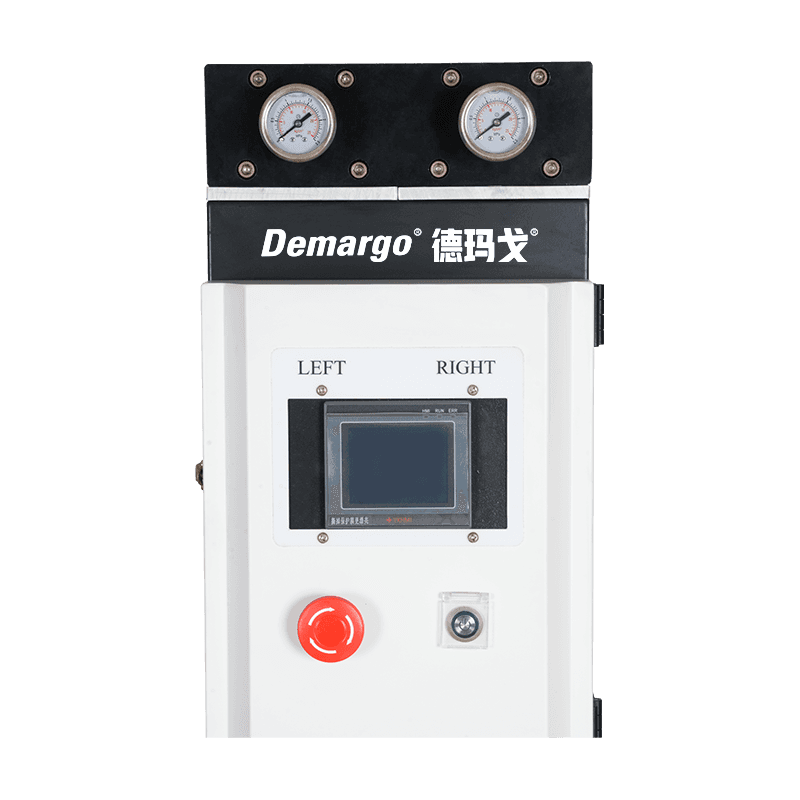

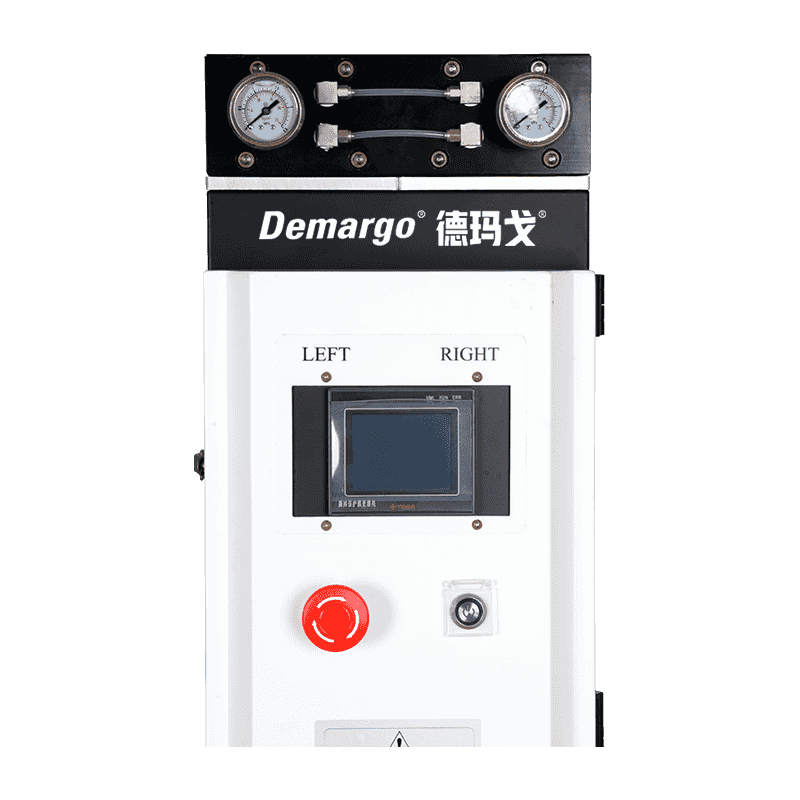

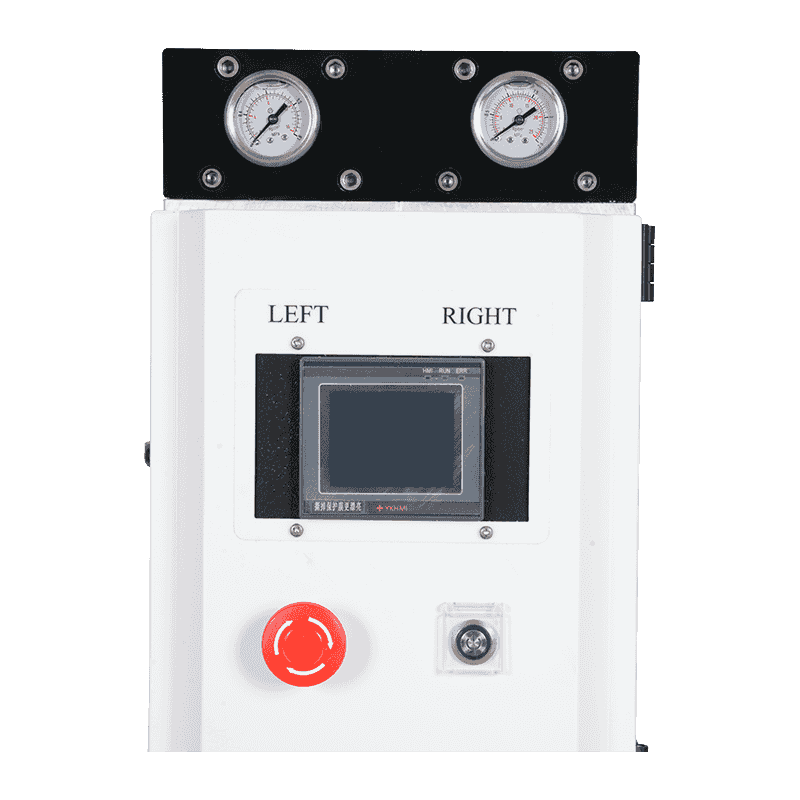

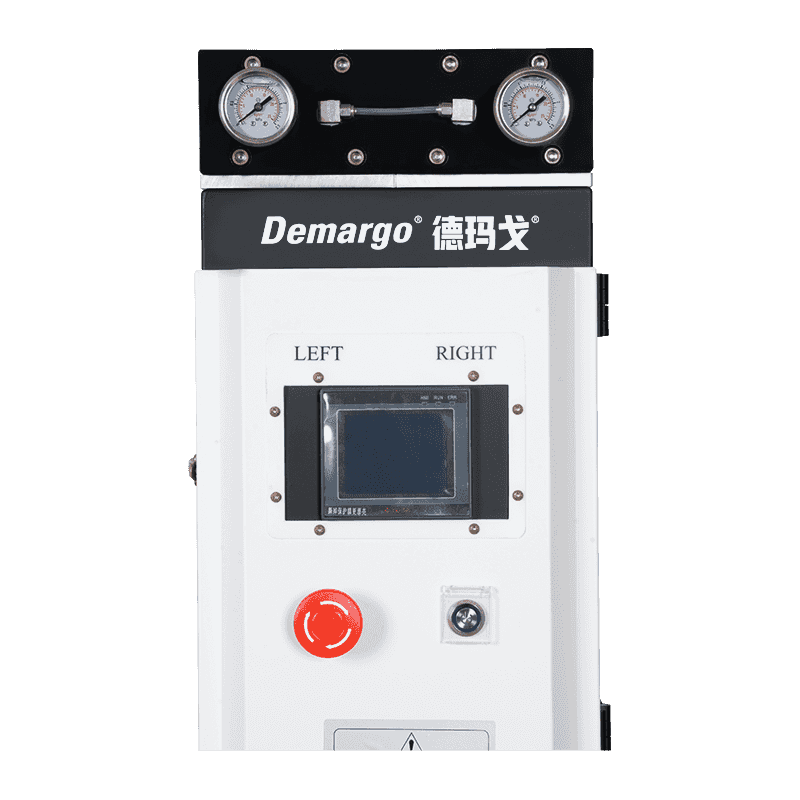

2. The PLC touch controller can operate accurately, stably, reliably, and for a long time
3. The PLC-friendly human-machine interface facilitates timely adjustment of the regeneration gas volume, saving a lot of energy consumption
4. Made of all-aluminum alloy, it is corrosion-resistant and will not cause secondary pollution of the gas

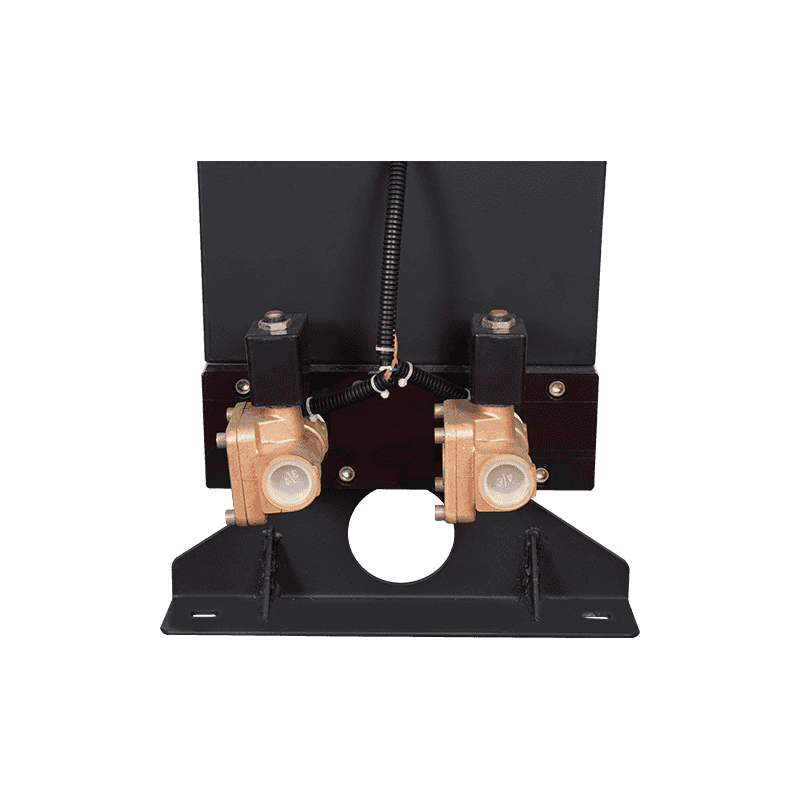

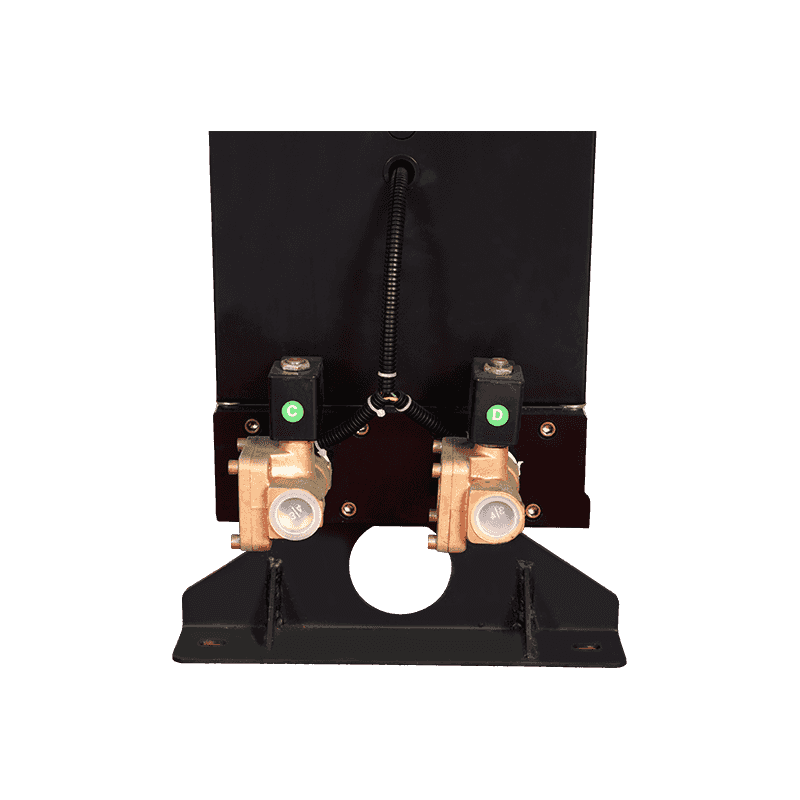

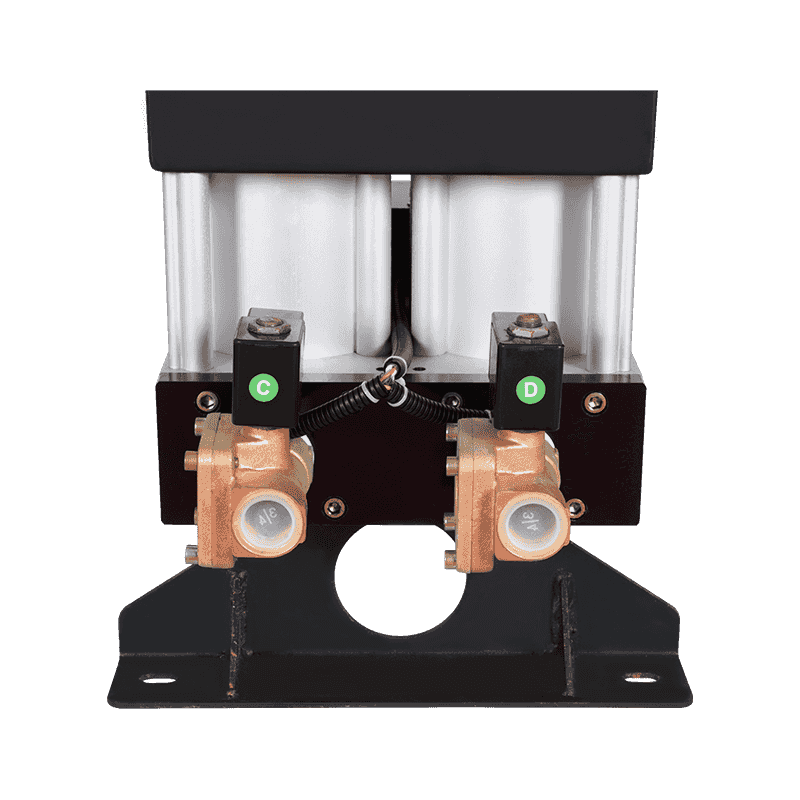

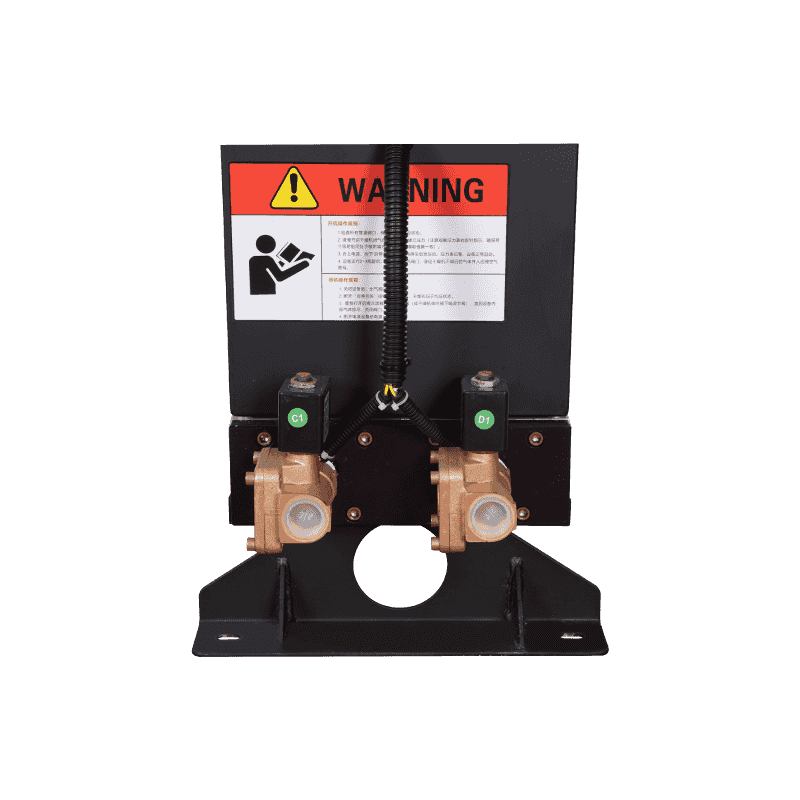

5. The high-precision valve body design prevents leakage, ball jamming, gas blowby, and other invalid gas losses, reducing gas consumption
6. The patented gas buffer structure is used to prevent high-pressure airflow from directly impacting the adsorbent and causing powdering
7. The effective service life of the adsorbent reaches more than 20,000 hours
8. With the modular high-efficiency degreaser, the water and oil content in the gas is lower than the ISO8573-2 standard
Prevent water and oil mist from appearing on the lens, increase output power, and protect expensive laser head equipment
9. Stable dew point of -20℃ or below
10. Provide a full range of OEM and ODM services
Inquiry
Product Description
|
Working conditions and technical indicators |
|
|
Purge air volume |
≤10~12% |
|
Working pressure |
0.6~1.0Mpa |
|
Inlet oil content |
≤0.1mg/m³ |
|
Outlet air pressure dew point |
-20℃~ -40℃ |
|
Desiccant |
Activated aluminum + Molecular sierra |
|
Working period |
T=4~20 minutes |
|
Inlet temperature |
0℃~45℃ |
|
Power |
220V/50Hz |
| Model | Processing Capacity | A | B | C | D | E | F | H | J | K | P | Q | ||
| m³/min | m³/h | I/s | ||||||||||||
| DM015JG | 1.5 | 90 | 25 | 460 | 300 | 260 | 305 | 300 | 365 | 1120 | G1/2 | G1/2 | 210 | 800 |
| DM026JG | 2.6 | 156 | 44 | 460 | 300 | 260 | 305 | 300 | 365 | 1300 | G3/4 | G3/4 | 210 | 1000 |
| DM038JG | 3.8 | 228 | 64 | 460 | 300 | 260 | 305 | 300 | 365 | 1450 | G3/4 | G3/4 | 210 | 1130 |
