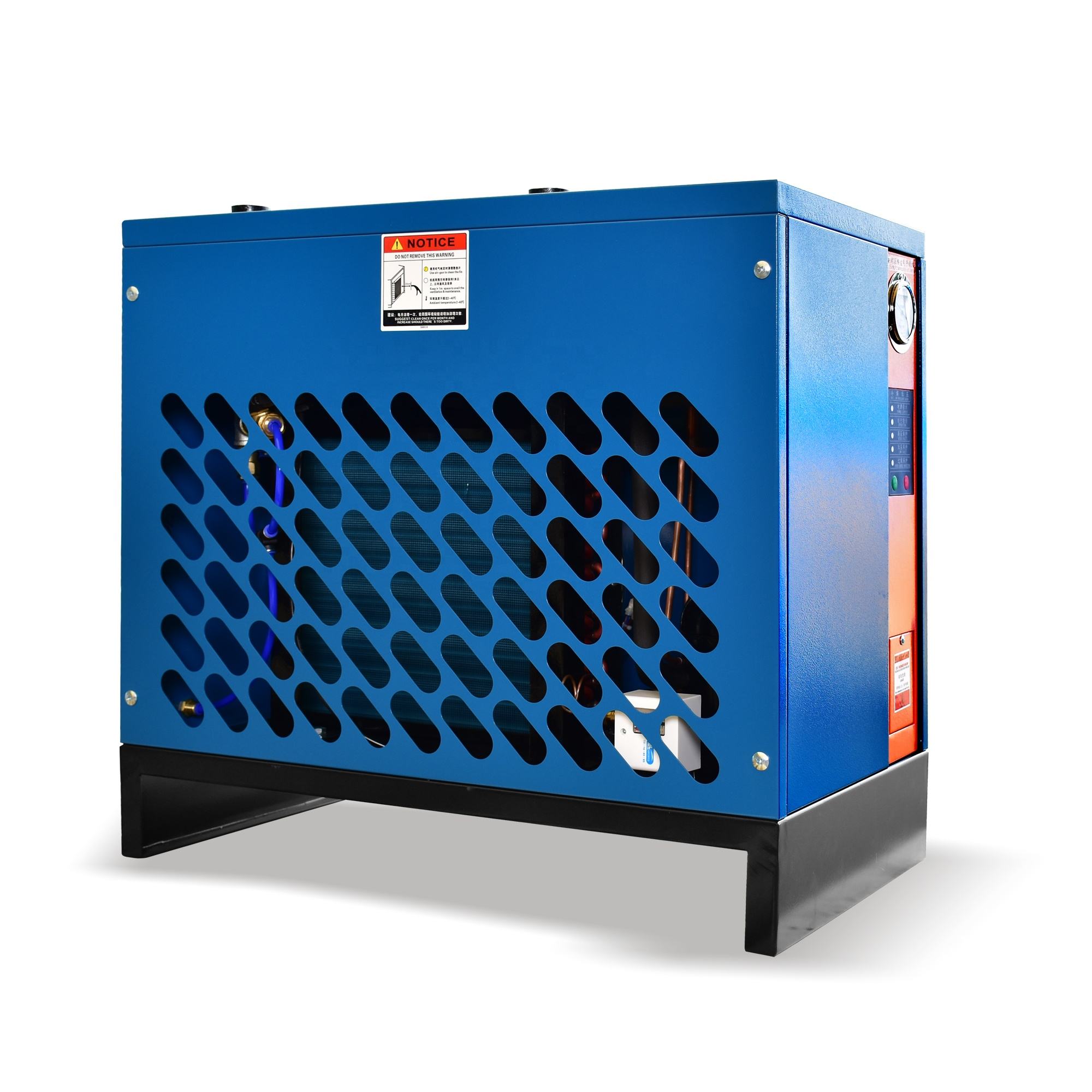

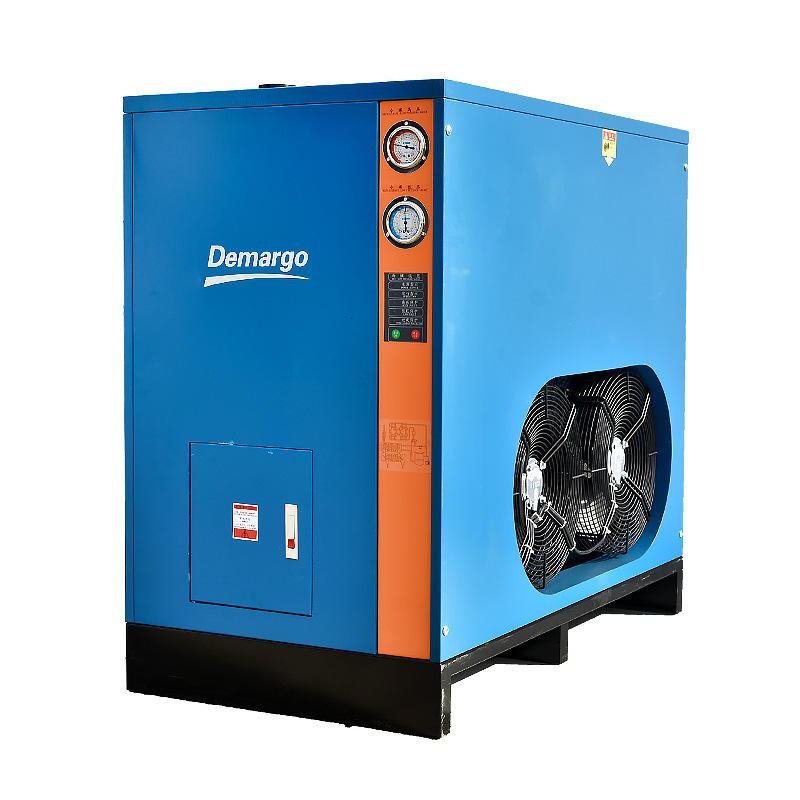

400CFM Normal Temperature Air-Cooling Refrigerated Compressor Air Dryer

Product Features and Technical Details

• Efficient Moisture Removal
  Utilizes a refrigeration-based air-cooling principle to condense and separate water vapor from compressed air, ensuring a stable pressure dew point for normal-temperature working conditions.

• Robust Material Construction
  The main structure is produced using carbon steel, with key components incorporating stainless steel and aluminum, providing a balance of strength, corrosion resistance, and long-term durability.

• Stable Operating Parameters
  Designed for a working pressure up to 1.0 MPa, with a maximum allowable pressure of 1.6 MPa, ensuring compatibility with most standard air compressor systems.

• Environmentally Friendly Refrigerants
  Supports R22, R410A, or R407C, offering flexibility to meet different environmental regulations and operating preferences.

• Compact and Space-Saving Design
  With dimensions of 650 × 400 × 690 mm and a net weight of 58 kg, the unit is suitable for workshops or facilities with limited installation space.

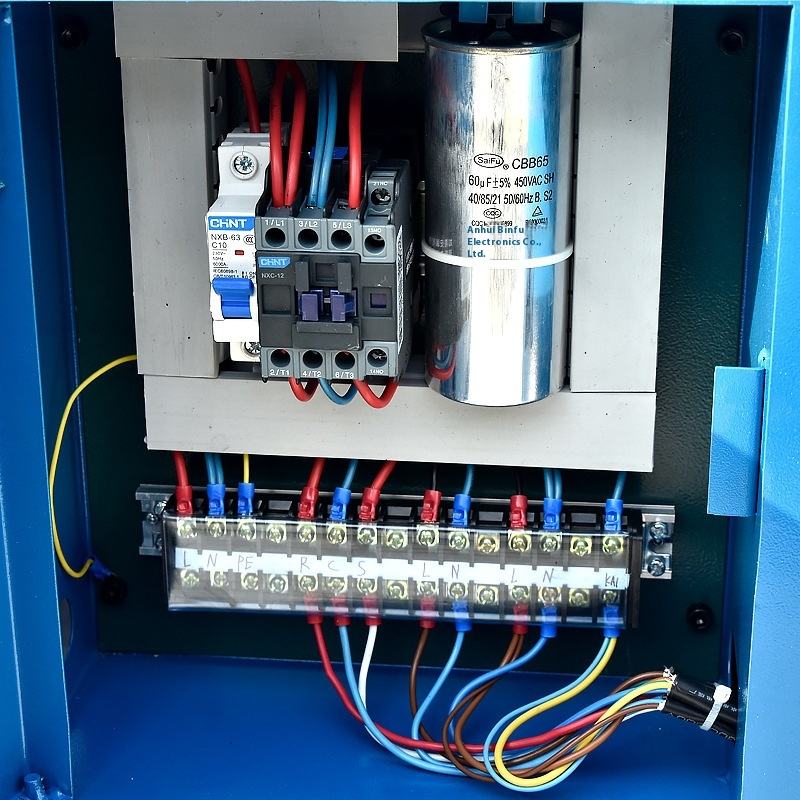

• Reliable Power Configuration
  Equipped with a 1 HP motor, delivering consistent cooling performance while maintaining reasonable energy consumption.

• Complete Documentation Support
  Supplied with user manual, machinery test report, and video outgoing inspection, ensuring transparency and ease of installation, operation, and maintenance.

Typical Applications

• Manufacturing and Assembly Lines
  Ensures dry compressed air for pneumatic tools, actuators, and automation equipment.

• General Industrial Air Systems
  Suitable for factories requiring stable air quality under normal temperature conditions.

• Workshops and Processing Facilities
  Helps reduce moisture-related corrosion, equipment wear, and production interruptions.

Comparison with Similar Refrigerated Air Dryers

Installation and Maintenance Notes

• Install the unit downstream of the air compressor and upstream of air storage or distribution pipelines.
• Ensure sufficient ventilation around the air dryer to maintain optimal heat exchange efficiency.
• Regularly check condensate drainage and refrigerant system condition to maintain long-term performance.

FAQ

What is the recommended installation position for this air dryer?

The air dryer should be installed at the rear of the air compressor, allowing hot compressed air to enter the dryer for effective cooling and moisture separation.

Is this air dryer suitable for high-temperature compressed air?

The unit is designed for normal temperature applications, with an inlet temperature limit of below 80°C.

Which refrigerant should I choose for my system?

The choice between R22, R410A, or R407C depends on local environmental regulations and system compatibility. All options provide stable cooling performance.

What support documents are included with the product?

The product is delivered with a user manual, machinery test report, and video outgoing inspection, ensuring full traceability and ease of use.

What is the warranty period for this air dryer?

The 400CFM Normal Temperature Air-Cooling Refrigerated Compressor Air Dryer comes with a 1.5-year warranty covering manufacturing defects under normal operating conditions.
