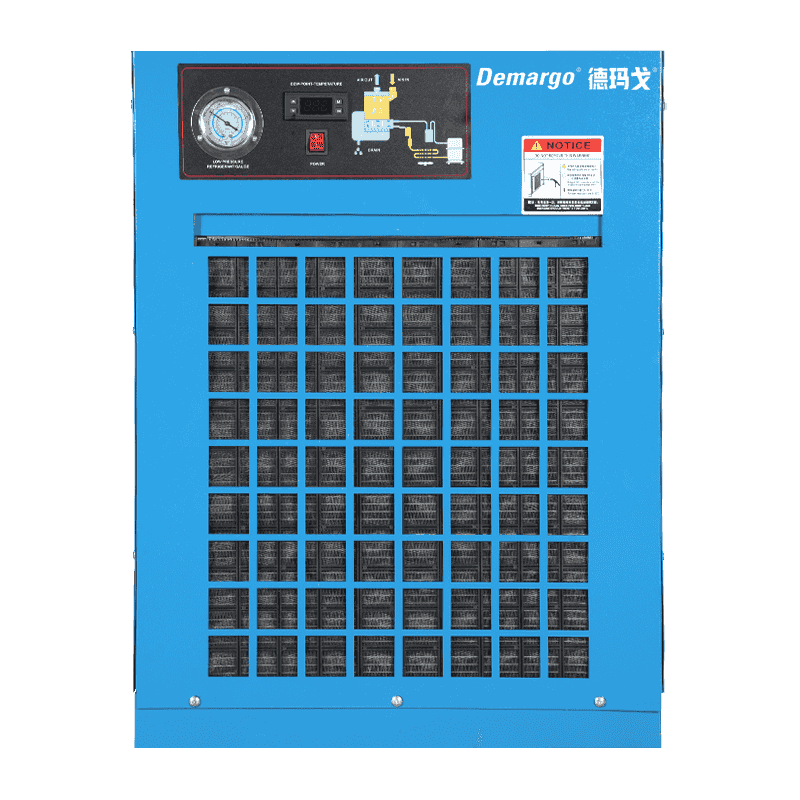

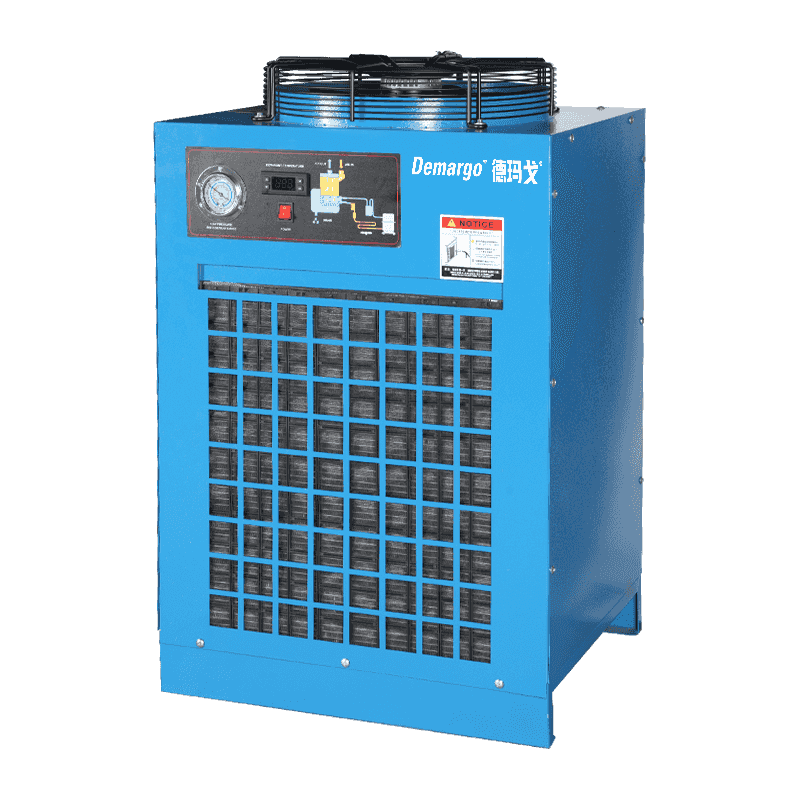

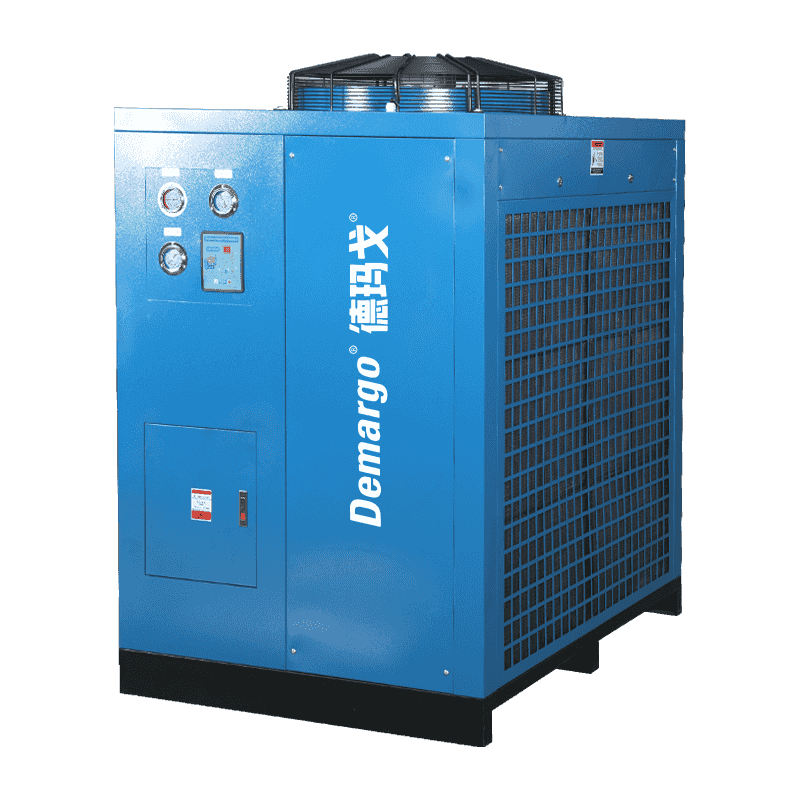

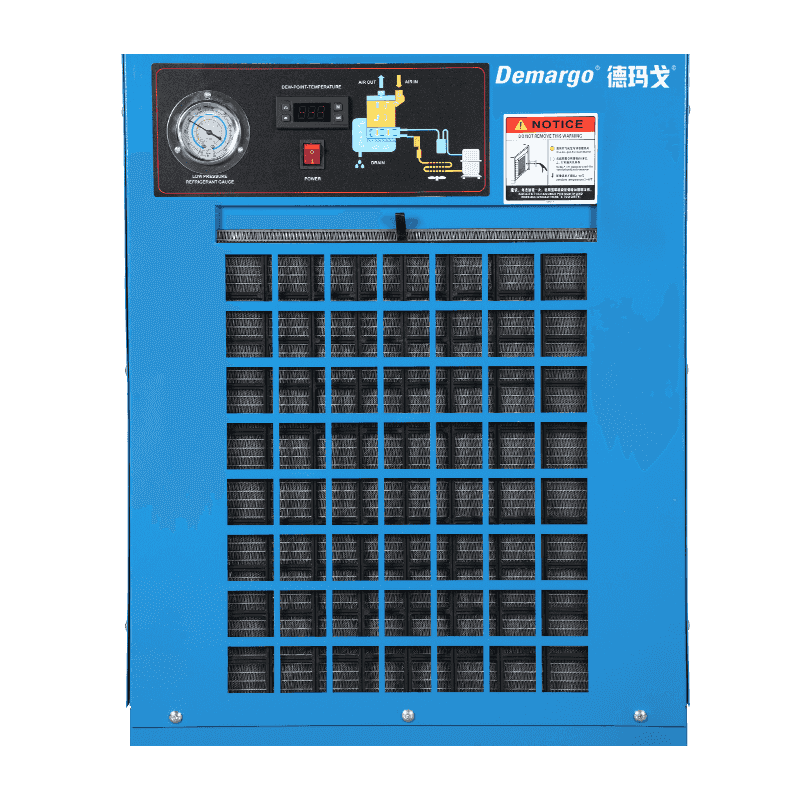

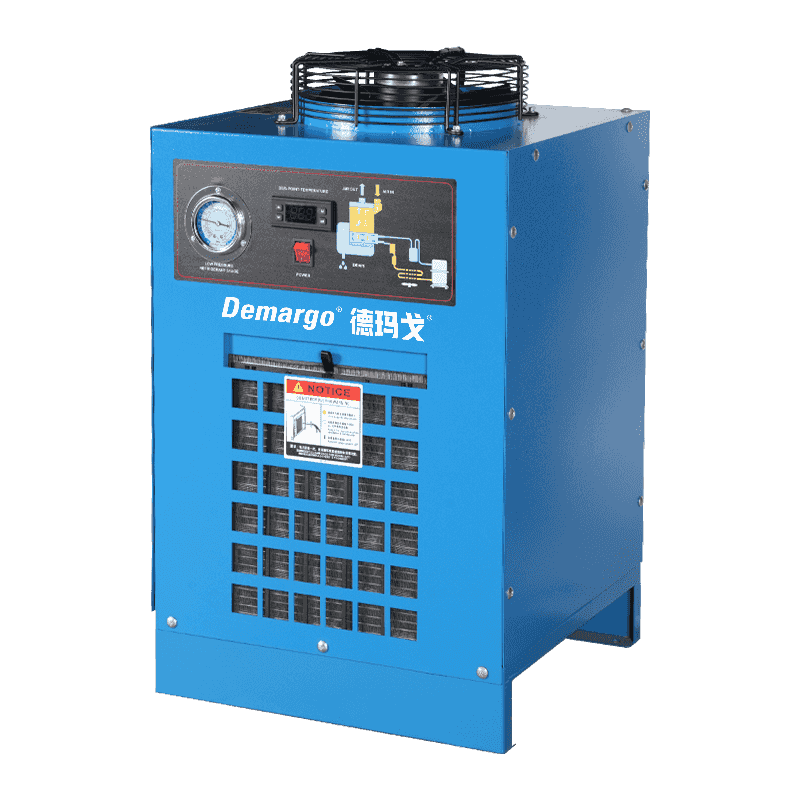

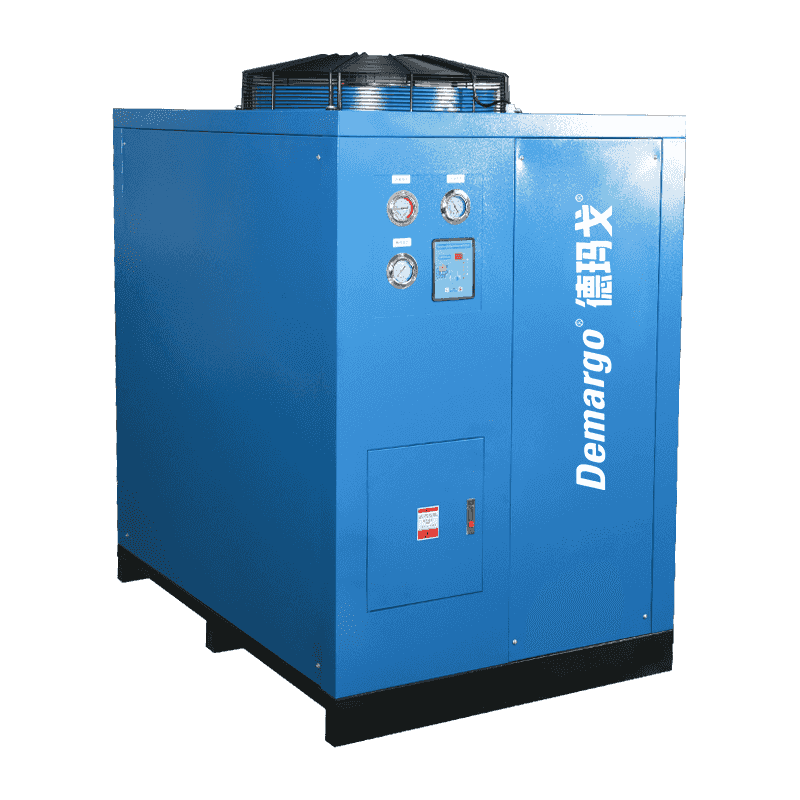

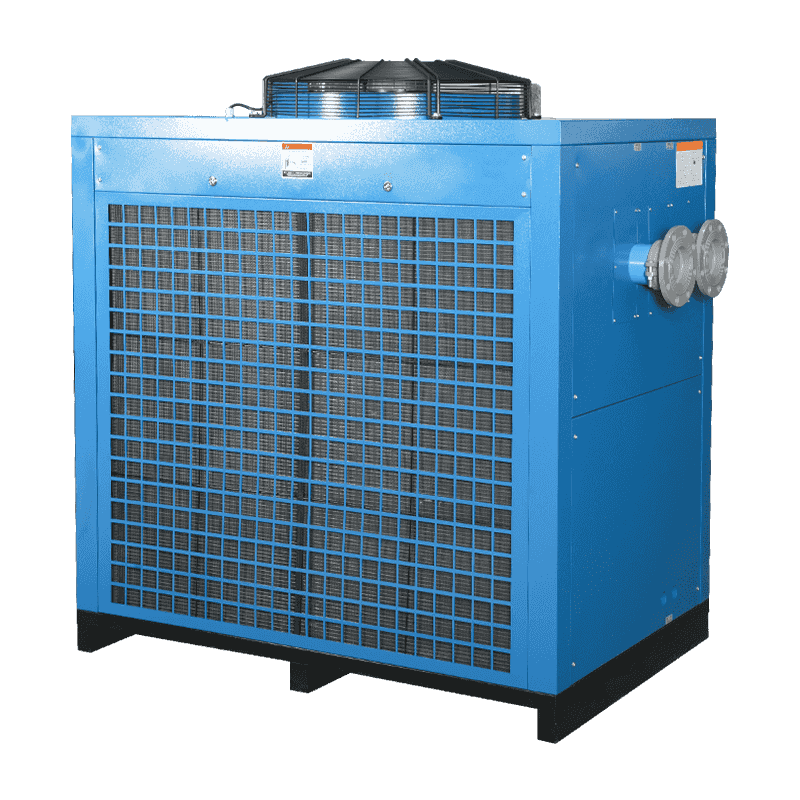

The Demargo® Energy-Saving and Environmentally Friendly Aluminum Plate Fin Refrigerated Air Dryer represents a new generation of high-performance compressed air treatment technology. Designed to deliver efficient and stable air drying, it combines advanced engineering with sustainability and energy savings. Available in 1m³ and 8m³ models, this series provides flexible solutions to meet different operational needs while ensuring superior reliability and long-term performance.
Inquiry
Product Description

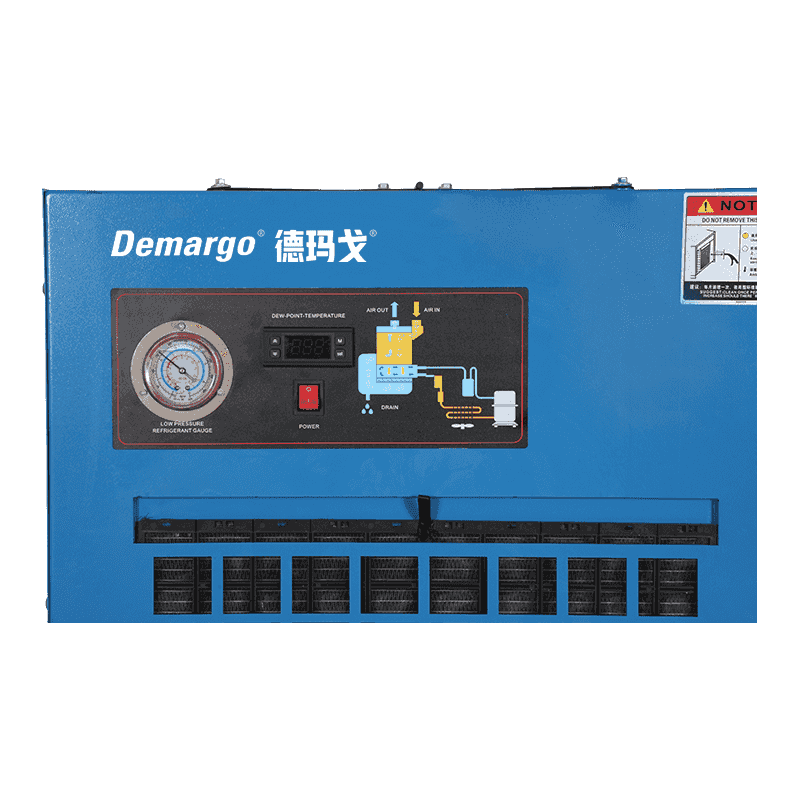

This upgraded refrigerated air dryer integrates precision dew point control, an automatic defrosting system, and a fault alarm function to guarantee consistent air quality and proactive system maintenance. Utilizing eco-friendly R410A and R407C refrigerants, it aligns with modern environmental standards while significantly reducing energy consumption—helping users save over 25% on energy costs.

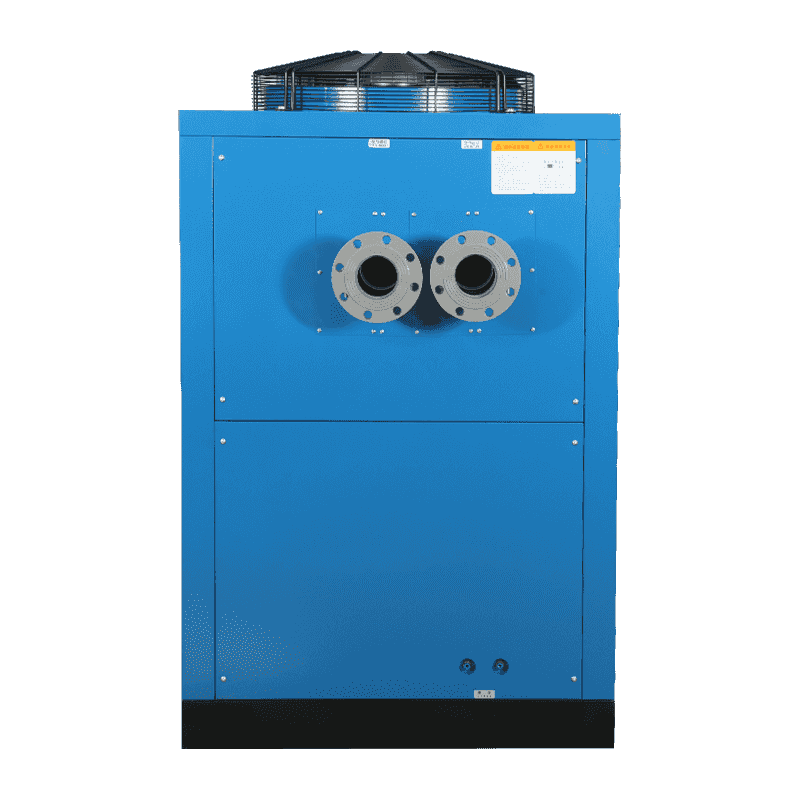

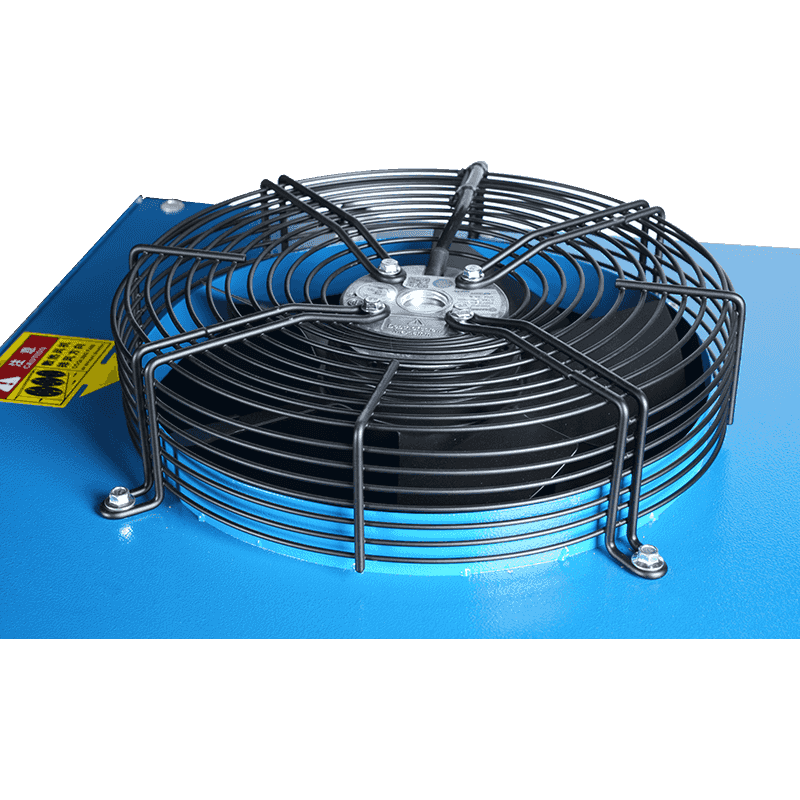

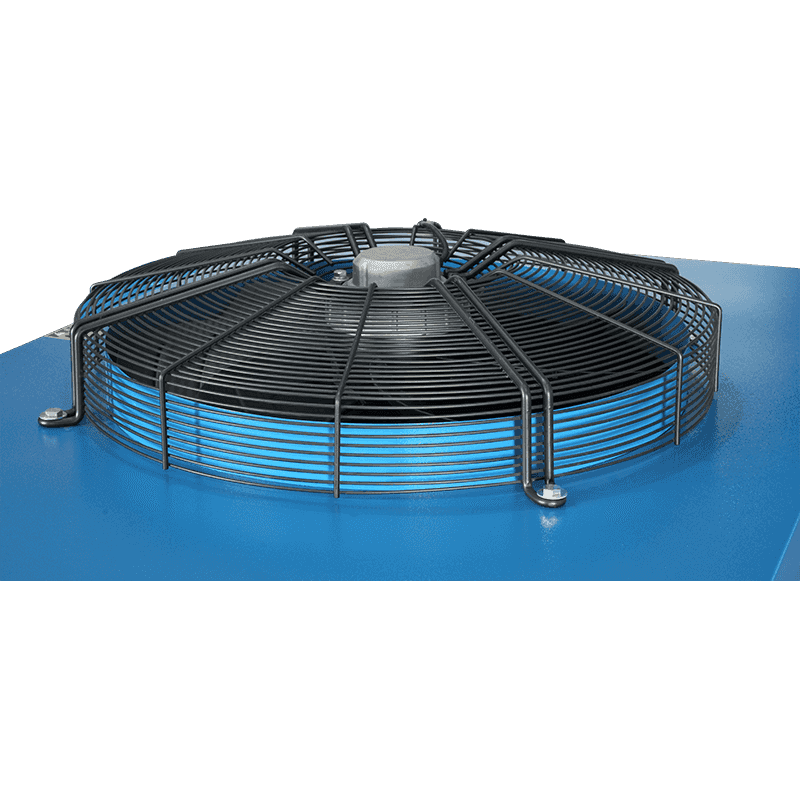

Built with a high-strength aluminum-magnesium alloy plate fin heat exchanger, the dryer offers excellent thermal efficiency, durability, and corrosion resistance. Its top-mounted exhaust design and standard remote interlocking function make installation and operation both convenient and adaptable to various system configurations. Additionally, the air conditioning filter screen at the inlet ensures cleaner air intake and enhances overall system protection.
Backed by Demargo’s 19 years of specialized expertise in gas purification, this air dryer delivers advanced technology, stable performance, and trusted quality—ensuring reliable, worry-free operation for modern compressed air systems.
|
Inlet temperature |
≤50℃ |
|
Cooling method |
Air-cooling |
|
Inlet pressure |
0.6~1.0Mpa |
|
Pressure drop |
≤0.02Mpa |
|
Dew point |
2~10℃ |
|
Refrigerant |
Environmentally friendly refrigerant R410A, R407C |
|
Ambient temperature |
≤38℃ |
| Refrigerated Dryer Parameter Table | ||||||||||||
| Model Specifications | Gas Processing Capacity Nm³/min |
Power Supply V/HZ |
Power KW |
Weight KG |
Appearance (length*width*height) MM |
Work Pressure Bar |
Import and Export Specifications | Refrigerant Type | Cooling Method | |||
| DM015APF | 1.5 | 220/50 | 0.67 | 40 | 450*470*750 | 16 | G1" | R134a | Air Cooling | |||
| DM026APF | 2.6 | 0.73 | 45 | 500*520*730 | R410a | |||||||
| DM038APF | 3.8 | 1.12 | 55 | 500*520*870 | G1-1/2" | |||||||
| DM065APF | 6.5 | 1.5 | 65 | |||||||||
| DM085APF | 8.5 | 2.0 | 80 | 600*570*880 | ||||||||
| DM110APF | 11.5 | 2.4 | 86 | 650*570*960 | G2" | |||||||
| DM138APF | 13.5 | 2.3 | 86 | |||||||||
| DM150APF | 17 | 380/50 | 2.9 | 145 | 980*700*1260 | 13 | G2"/DN65 | |||||
| DM150APW | 17 | 2.5 | 155 | 980*700*1260 | Water Cooling | |||||||
| DM200APF | 20 | 4.6 | 165 | 1350*900*1450 | G3"/DN80 | R407c | Air Cooling | |||||
| DM200APW | 20 | 3.8 | 155 | 1350*900*1450 | Water Cooling | |||||||
| DM250APF | 25 | 5.5 | 170 | 1350*900*1450 | Air Cooling | |||||||
| DM250APW | 25 | 4.6 | 180 | 1350*900*1450 | Water Cooling | |||||||
| DM350APF | 35 | 6.7 | 320 | 1350*1050*1630 | DN80 | Air Cooling | ||||||
| DM350APW | 35 | 5.8 | 330 | 1350*1050*1530 | Water Cooling | |||||||
| DM400APF | 40 | 8.8 | 420 | 1650*1050*1700 | DN100 | Air Cooling | ||||||
| DM400APW | 40 | 7.7 | 440 | 1650*1050*1530 | Water Cooling | |||||||
| DM500APF | 50 | 9.7 | 450 | 1650*1050*1700 | Air Cooling | |||||||
| DM500APW | 50 | 8.1 | 480 | 1650*1050*1530 | Water Cooling | |||||||
| 1-150 cubic models can be customized, please consult your exclusive customer service for detailed parameters | ||||||||||||
